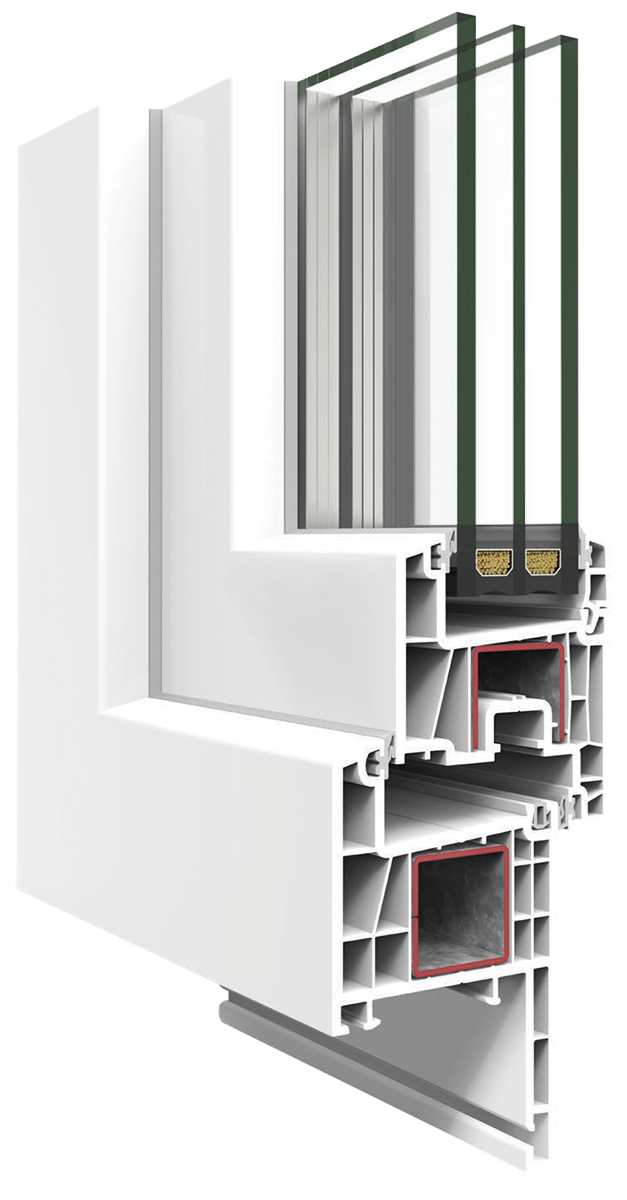

Cortizo Series 70AD uPVC Window with Renovation Frame

Uf: 0.16 Btu/h·ft2·F

Frame depth: 60 mm + 10 mm

Visible section: 57/65 mm

Sash depth: 70 mm

Max width: 47”

Max height: 63”

Max weight per sash: 286lb.

Max glazing: 42 mm

Acoustic insulation: Rw 46dB

Cortizo Series 70AD uPVC window system equipped with a renovation frame extension is particularly suitable for refurbishment projects, allowing for the replacement of old windows without the need for extensive structural modifications.

OPERATION

A cat sitting on a porch with a red brick wall in the background

SECTIONS

Diagram showing three geometric figures with lines and angles, each labeled with a number, on a black background.

Sash + Renovation Frame

This is a technical drawing or blueprint with measurements depicted in inches, showing various rectangular and L-shaped components and annotations.

Sash + Frame with Double Hook

Technical drawing or blueprint with measurements and annotations.

Sash + Renovation Frame
40mm and Hook

A floor plan diagram of a building layout, showing various rooms, corridors, and measurements.

Sash + Renovation Frame
65mm and Hook

SYSTEM CAPABILITIES

Empty picture frame with a white mat and gray border.

FIXED
WINDOWS

An open window with a latch, seen from inside, overlooking an exterior dark area.

AWNING
WINDOWS

A white open window with a tilt-and-turn design, showing the window pane slightly ajar and a handle on the right side.

RIBBON
WINDOWS

A black and white illustration of open and closed window frames.

INSWING & OUTSWING
WINDOWS

Two open glass doors with handles, viewed from the front.

TILT & TURN
WINDOWS

A window with a latch, viewed from an angle.

TILT/HOPPER
WINDOWS

Black and white illustration of a window with an arched top and divided panes, including a semi-circular glazing section at the top with a radial pattern.

SPECIALTY
WINDOWS
