Radnor Series Aluminum Window System
for Noisy Environments

An aircraft flying in a cloudy sky.

Vetrina's RADNOR Series aluminum window system was designed for use in buildings located in busy urban areas. Thanks to its quadruple glazing with four integrated EPDM gaskets and double 4-3/4” hidden sash construction – it provides unparalleled thermal and acoustic performance, as well as best in class weathertightness.

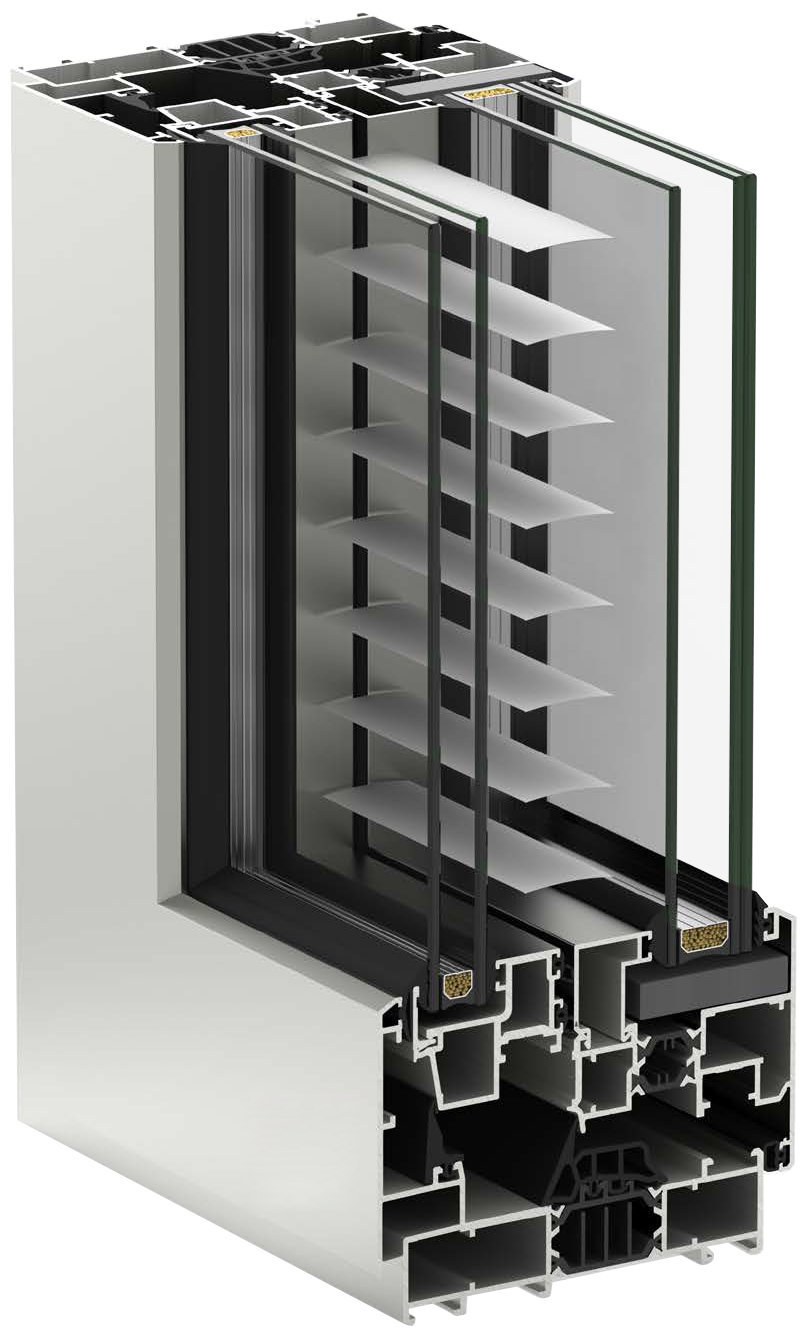

Cross-sectional view of a modern insulated glass window with multiple layers of framing and internal shading louvers.

Real world applications yield noise reduction results of up to 50dB, along with major energy savings and meaningful reductions in maintenance costs.

PERFORMANCE & SPECS:

U-Value: 0.21 Btu/h·ft²· F
Design Pressure: 62.4 lb/ft³
Water Resistance: 12.5 lb/ft³
STC: 50 dB
Quadruple EPDM Gasket

Maximum Glazing Thickness
External Sash: 7/8”
Internal Sash: 1 3/16”

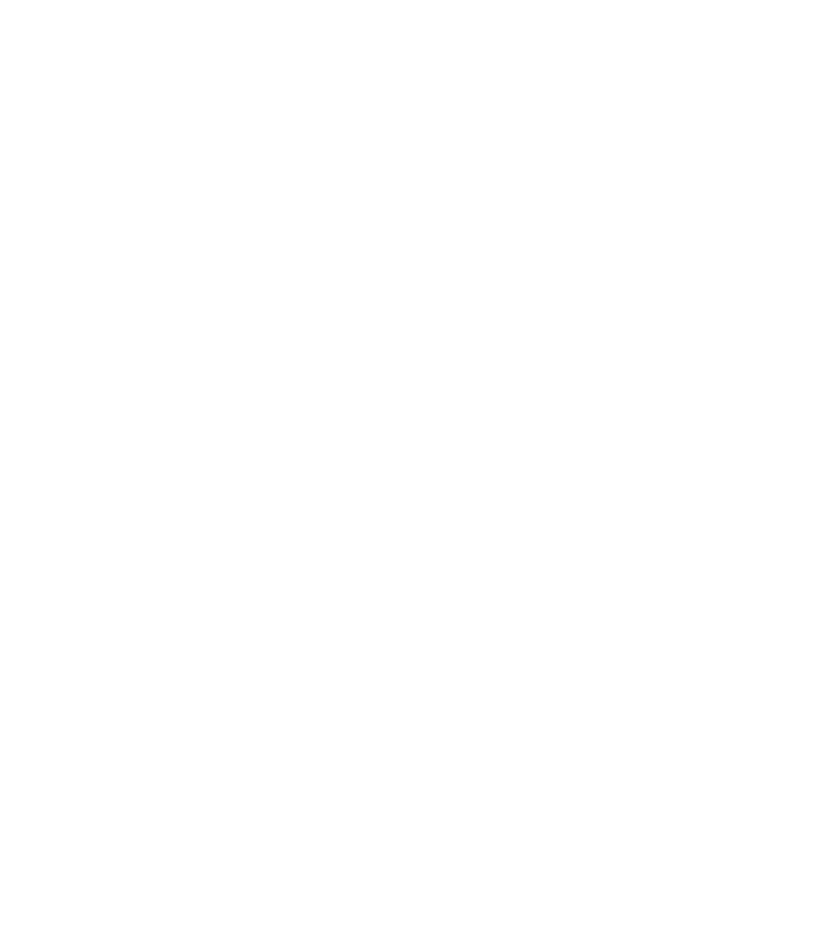

Sections
Frame: 4 13/16” (122 mm)
Sash: 4 13/16” (121 mm)
Profile: 1/16” (1.6mm)

Max Dimensions
Width: 43” (1,100 mm)
Height: 86” (2,200 mm)
Max Weight per Sash: 330lb.

Polyamide Strips
(Reinforced with Fiberglass)
Frame: 1-3/8” (35 mm)
Sash: 13/16” (20 mm)

Operation
Inward Opening:
Side Hung, Tilt & Turn (1 and 2 Sashes)

Download CAD Drawing

Blank white sheet of paper.
Six tarot or playing cards with minimalist line art designs arranged in two rows of three.
Split image showing a close-up of an open window on the left and a modern hotel room with large windows, a bed, and city view on the right.
Interior view of an open glass door leading to a balcony with trees and hills visible outside.

SYSTEM CAPABILITIES

Empty picture frame with white background and silver border.
A window with a screen in a frame, mounted on a dark wall or surface.

FIXED
WINDOWS

AWNING
WINDOWS

INSWING & OUTSWING
WINDOWS

TILT/HOPPER
WINDOWS

Open and closed window with a view of the sky.
An open window with a screen and a white frame, partly opened with the right side slightly tilted outward.
A black and white illustration of a rectangular window with a handle, open, showing a view of the outside.
Two cartoon-style glass doors with handles, one slightly open, set against a plain background.
Black and white illustration of a tall, arched window with a semi-circular top section containing four triangular panes, and a rectangular lower section divided into nine smaller panes.

SPECIALTY
WINDOWS
