Q45RX / QA45RX Pull Handle

$0.00

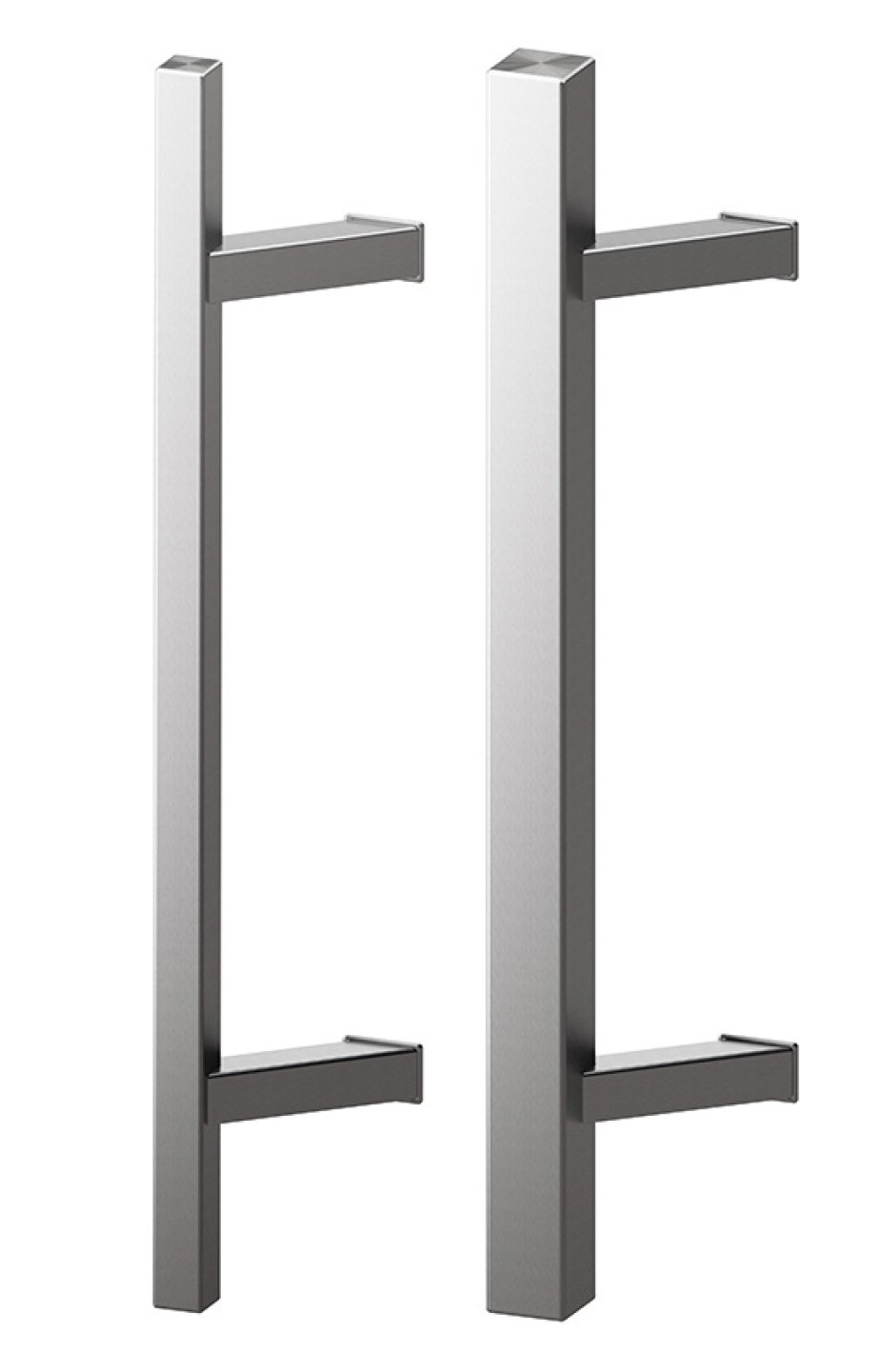

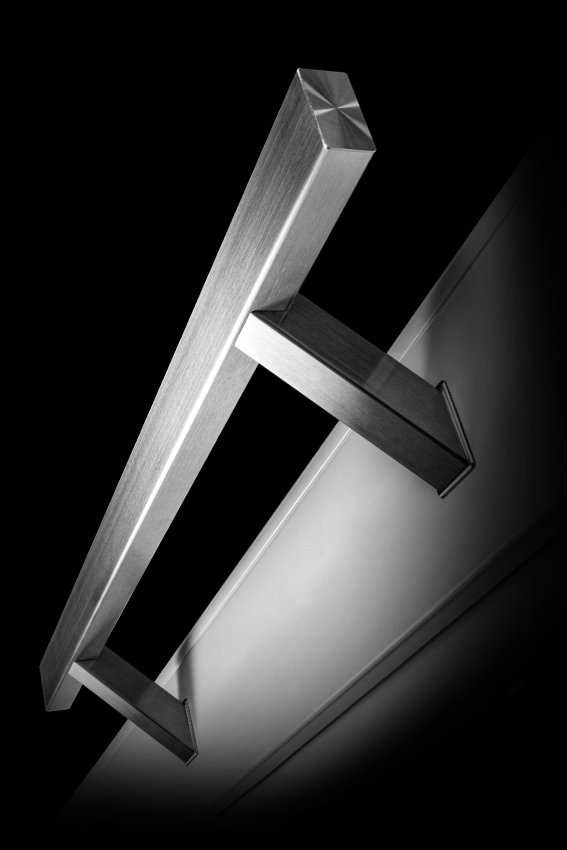

Q45RX

The handle is made from 304 or 316 stainless steel. The standard finish is brushed, but it can also be sandblasted (up to 1000mm). Stainless steel handles are available in tube dimensions of 40x10, 40x20, 40x40, and 50x25.

Type 316 stainless steel is more resistant to corrosion and is recommended for use in harsh weather conditions, as well as in environments exposed to chemicals and moisture, such as areas with salt or chlorinated water. Type 304 stainless steel is an economical solution primarily used in neutral environments.

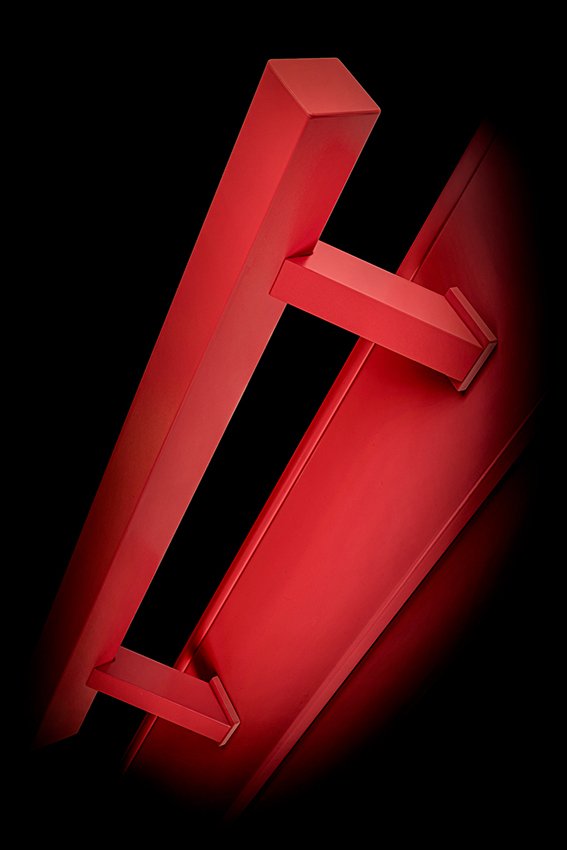

QA45RX

Constructed from aluminum with dimensions of 25x25, 40x20, 40x40, or 50x25. This handle can be coated in any RAL color or anodized.

Optional Access Control Features:

✓ EKEY fingerprint scanner dLine

✓ Fingerprint scanner Idencom CMOS

✓ Fingerprint scanner Idencom Mini-X-App

✓ Fingerprint scanner NAVKOM

✓ Touch sensor

✓ Microsensor

✓ Microswitch

✓ LED in a base

✓ LED in a plug of a handle

Q45RX

The handle is made from 304 or 316 stainless steel. The standard finish is brushed, but it can also be sandblasted (up to 1000mm). Stainless steel handles are available in tube dimensions of 40x10, 40x20, 40x40, and 50x25.

Type 316 stainless steel is more resistant to corrosion and is recommended for use in harsh weather conditions, as well as in environments exposed to chemicals and moisture, such as areas with salt or chlorinated water. Type 304 stainless steel is an economical solution primarily used in neutral environments.

QA45RX

Constructed from aluminum with dimensions of 25x25, 40x20, 40x40, or 50x25. This handle can be coated in any RAL color or anodized.

Optional Access Control Features:

✓ EKEY fingerprint scanner dLine

✓ Fingerprint scanner Idencom CMOS

✓ Fingerprint scanner Idencom Mini-X-App

✓ Fingerprint scanner NAVKOM

✓ Touch sensor

✓ Microsensor

✓ Microswitch

✓ LED in a base

✓ LED in a plug of a handle



Q45RX / QA45RX Pull HandleTechnical Specs

DIMENSIONS Q45RX
LENGTH L HOLE SPACING X 25x25 40x20 40x40 50x25
304 316 304 316 304 316 304 316
300 200 ✓ ● ✓ ● ● ● ● ●
400 200 ✓ ● ✓ ● ● ● ● ●
500 300 ✓ ✓ ✓ ✓ ● ● ● ●
580 380 ✓ ✓ ✓ ✓ ● ● ● ●
600 400 ✓ ✓ ✓ ✓ ✓ ● ✓ ●
800 600 ✓ ✓ ✓ ✓ ✓ ● ✓ ●
1000 800 ✓ ✓ ✓ ✓ ✓ ● ✓ ●
1200 1000 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
1400 1200 ○ ○ ✓ ● ✓ ● ✓ ●
1500 1300 ○ ○ ✓ ● ✓ ● ✓ ●
1600 1300 ○ ○ ✓ ● ● ● ● ●
1600 1400 ○ ○ ● ● ✓ ✓ ✓ ✓
1800 1300 ○ ○ ✓ ● ● ● ● ●
1800 1600 ○ ○ ● ● ✓ ✓ ✓ ✓
2000 1800 ○ ○ ● ● ✓ ● ✓ ●
2200 2000 ○ ○ ○ ○ ✓ ● ✓ ●
150-1200   ● ● ● ● ● ● ● ●
1201-1600 40x20 max 1300
40x40 max 1400		 ● ● ● ● ● ● ● ●
1601-2000 40x20 max 1300
40x40 max 1800		 ○ ○ ● ● ● ● ● ●
2001-2600 max 2300 ○ ○ ○ ○ ● ● ● ●
DIMENSIONS QA45RX
LENGTH L HOLE SPACING X 25x25 40x20 40x40
300 200 ✓ ✓ ○
400 200 ✓ ✓ ○
500 300 ✓ ✓ ○
580 380 ✓ ✓ ○
600 400 ✓ ✓ ○
800 600 ✓ ✓ ✓
1000 800 ✓ ✓ ✓
1200 1000 ✓ ✓ ✓
1400 1200 ○ ✓ ✓
1600 1200 ○ ✓ ✓
1800 1300 ○ ○ ✓
2000 1600 ○ ○ ✓
150-1200   ● ● ●
1201-1600 40x20 max 1200 ○ ● ●
1601-2300 max 1600 ○ ○ ●
2301-2600 3 fixing points ○ ● ●
