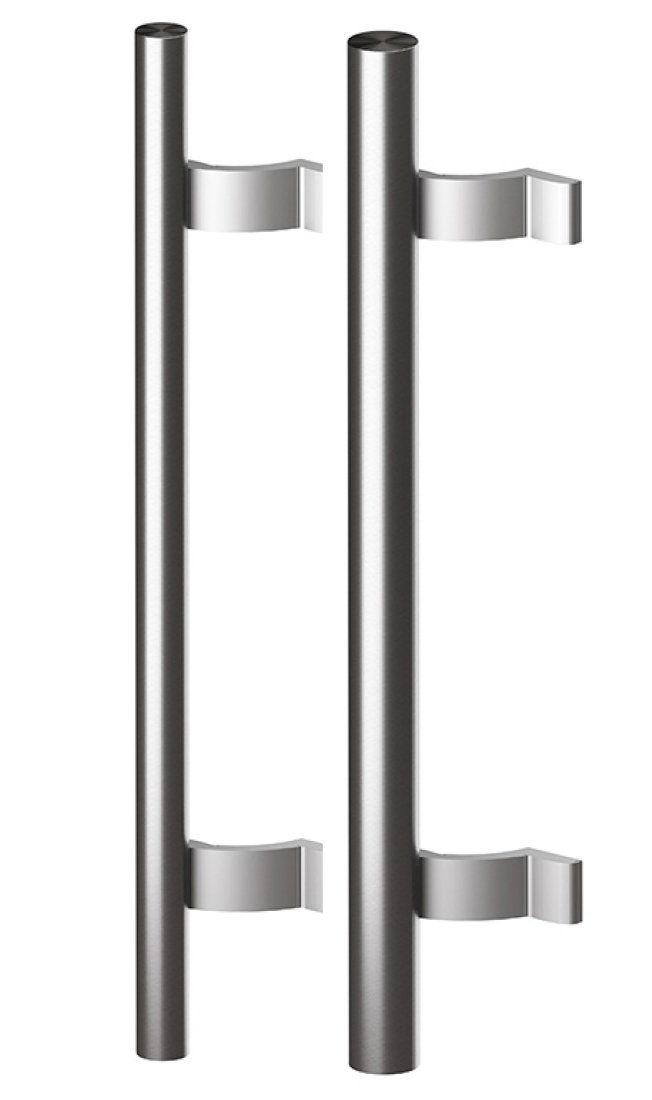

Z10 Pull Handle

$0.00

The Z10 pull handle is made from Ø30 or Ø40 round stainless steel tube.

Quantity:
Add To Cart

Z10 Pull Handle

$0.00

The Z10 pull handle is made from Ø30 or Ø40 round stainless steel tube.

Quantity:
Add To Cart


Z10 Pull Handle Technical Specs

DIMENSIONS
LENGTH L HOLE SPACING X ELLIPSE
ALUMINIUM
300 200 ●
400 200 ●
500 300 ●
580 380 ●
600 400 ●
800 600 ✓
1000 800 ✓
1200 1000 ✓
1400 1200 ✓
1600 1200 ✓
1800 1300 ✓
2000 1600 ✓
max 2500 max 2300 ●
