The handle is made of 304 or 316 stainless steel. The standard finish is brushed, but it can also be sandblasted (up to 1000mm). The Q10D stainless steel handle is made from a 40x40 tube.
Type 316 stainless steel is more resistant to corrosion and is recommended for use in harsh weather conditions, as well as in environments exposed to chemicals and moisture, such as areas with salt or chlorinated water. Type 304 stainless steel is an economical solution primarily used in neutral environments.
The handle is made from aluminum with tube dimensions of 40x40. The aluminum handle can be coated in any color from the RAL palette, and anodized finishes are also available.
The baluster of the handle is made from oak wood, stained with Golden Oak 2245 Sopur stain and finished with clear varnish. Unstained versions are available. Other available stain colors include Dark Walnut (Brown 22-50), Walnut (Walnut 22-74), and Palisander (Palisander 26-01), all finished with clear varnish.
Optional Access Control Features:
✓ EKEY fingerprint scanner dLine
✓ Fingerprint scanner Idencom CMOS
✓ Fingerprint scanner Idencom Mini-X-App
✓ Fingerprint scanner NAVKOM
✓ Touch sensor
✓ Microsensor
✓ Microswitch
✓ LED in a base
✓ LED in a plug of a handle
The handle is made of 304 or 316 stainless steel. The standard finish is brushed, but it can also be sandblasted (up to 1000mm). The Q10D stainless steel handle is made from a 40x40 tube.
Type 316 stainless steel is more resistant to corrosion and is recommended for use in harsh weather conditions, as well as in environments exposed to chemicals and moisture, such as areas with salt or chlorinated water. Type 304 stainless steel is an economical solution primarily used in neutral environments.
The handle is made from aluminum with tube dimensions of 40x40. The aluminum handle can be coated in any color from the RAL palette, and anodized finishes are also available.
The baluster of the handle is made from oak wood, stained with Golden Oak 2245 Sopur stain and finished with clear varnish. Unstained versions are available. Other available stain colors include Dark Walnut (Brown 22-50), Walnut (Walnut 22-74), and Palisander (Palisander 26-01), all finished with clear varnish.
Optional Access Control Features:
✓ EKEY fingerprint scanner dLine
✓ Fingerprint scanner Idencom CMOS
✓ Fingerprint scanner Idencom Mini-X-App
✓ Fingerprint scanner NAVKOM
✓ Touch sensor
✓ Microsensor
✓ Microswitch
✓ LED in a base
✓ LED in a plug of a handle

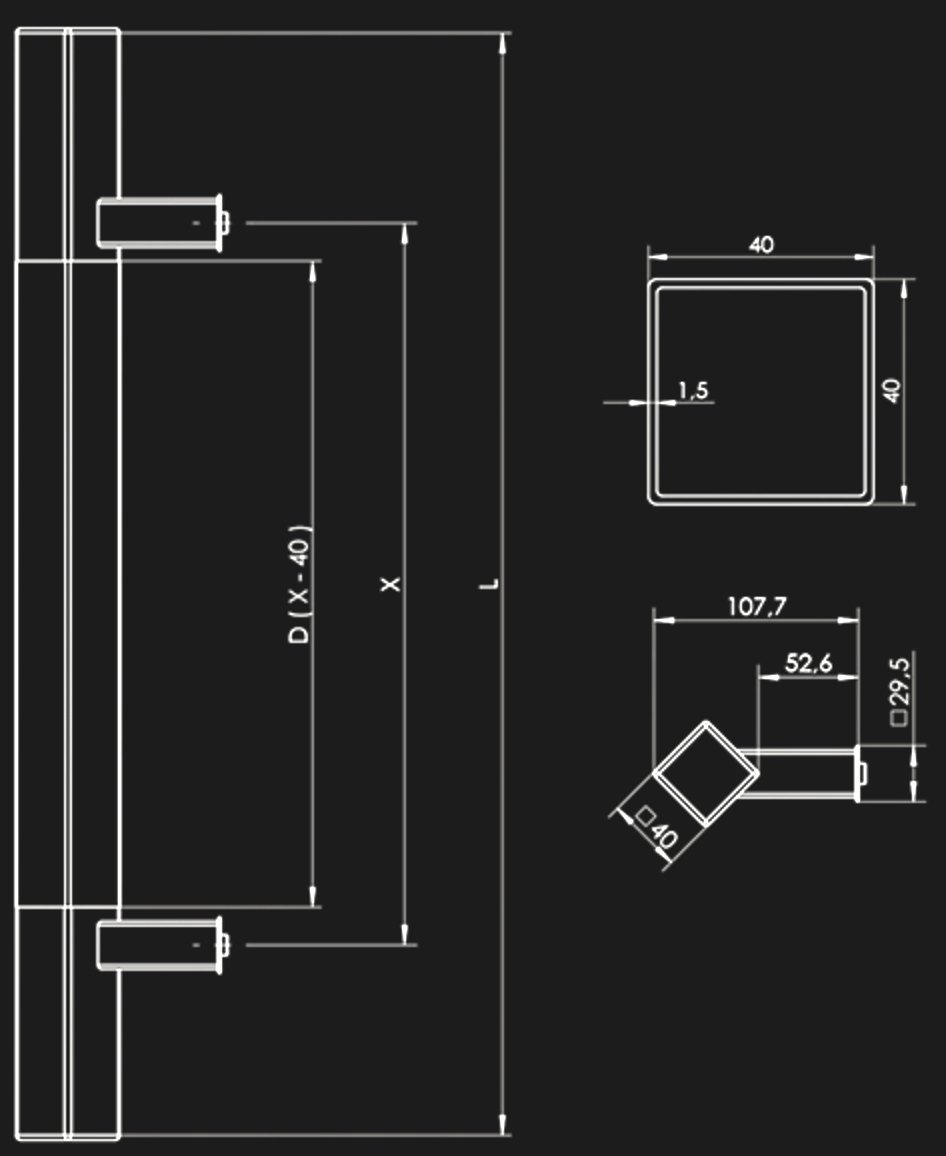

| DIMENSIONS Q10RXD | |||||
| LENGTH L | HOLE SPACING X | WOODEN PART D | 40x40 | ||
| 304 | 316 | ||||
| 1000 | 800 | 760 | ✓ | ✓ | |
| 1200 | 1000 | 960 | ✓ | ✓ | |
| 1600 | 1400 | 1360 | ✓ | ✓ | |
| DIMENSIONS QA10RXD | ||||
| LENGTH L | HOLE SPACING X | WOODEN PART D | 40x40 | |
| 1000 | 800 | 760 | ✓ | |
| 1200 | 1000 | 960 | ✓ | |
| 1600 | 1400 | 1360 | ✓ |
|
