Custom Fenestration Package for Meadowbrook Country Club in Ballwin, MO
PROJECT SCOPE
Type: Country Club Estates
Location: 200 Meadowbrook Country Club Estates, Ballwin, MO 63011
Age of Structure: Renovation and Expansion
Installers: JA MILLS BUILDER
Window Systems: Bi-Fold Doors, Millennium 70mm Swing Doors, Ardmore Series 70mm Windows, Delran Series 60mm Windows
Vetrina Windows recently completed the design and manufacturing package for a multi-phase renovation and expansion project at Meadowbrook Country Club in Ballwin, Missouri. The work was installed by JA MILLS BUILDER and included custom aluminum bifold doors, bifold windows, swing doors with anti-panic hardware, sidelight and fixed aluminum windows.
The project was completed across three separate areas of the property: the clubhouse renovation, the clubhouse expansion, and the pool house. Each phase required a different mix of operable glass openings, fixed glazing, entrance doors, and specialty hardware. In a private club environment, this type of fenestration package has to do more than look attractive – it needs to handle daily traffic, seasonal use, indoor-outdoor programming, safety requirements, and long-term durability.

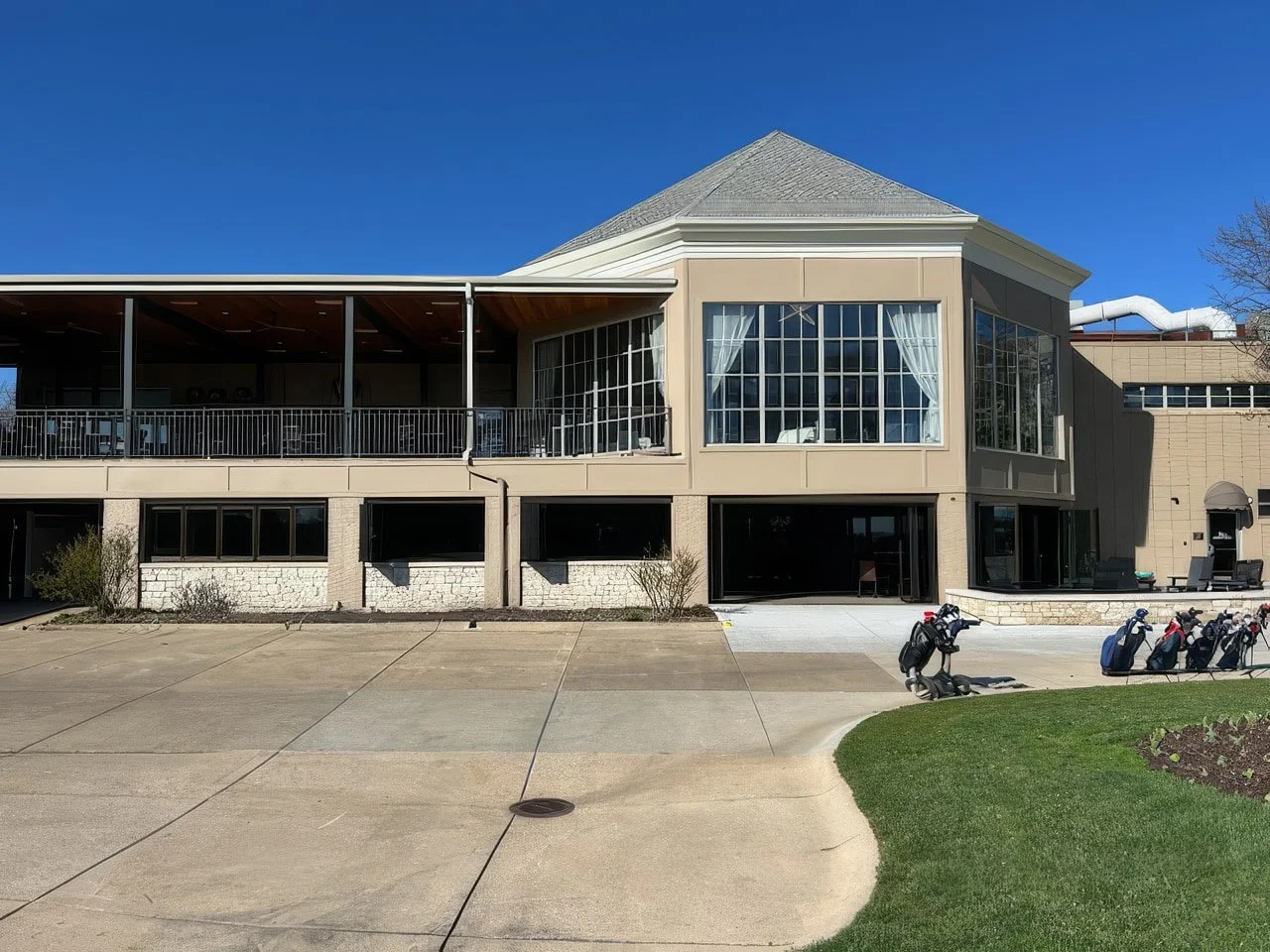

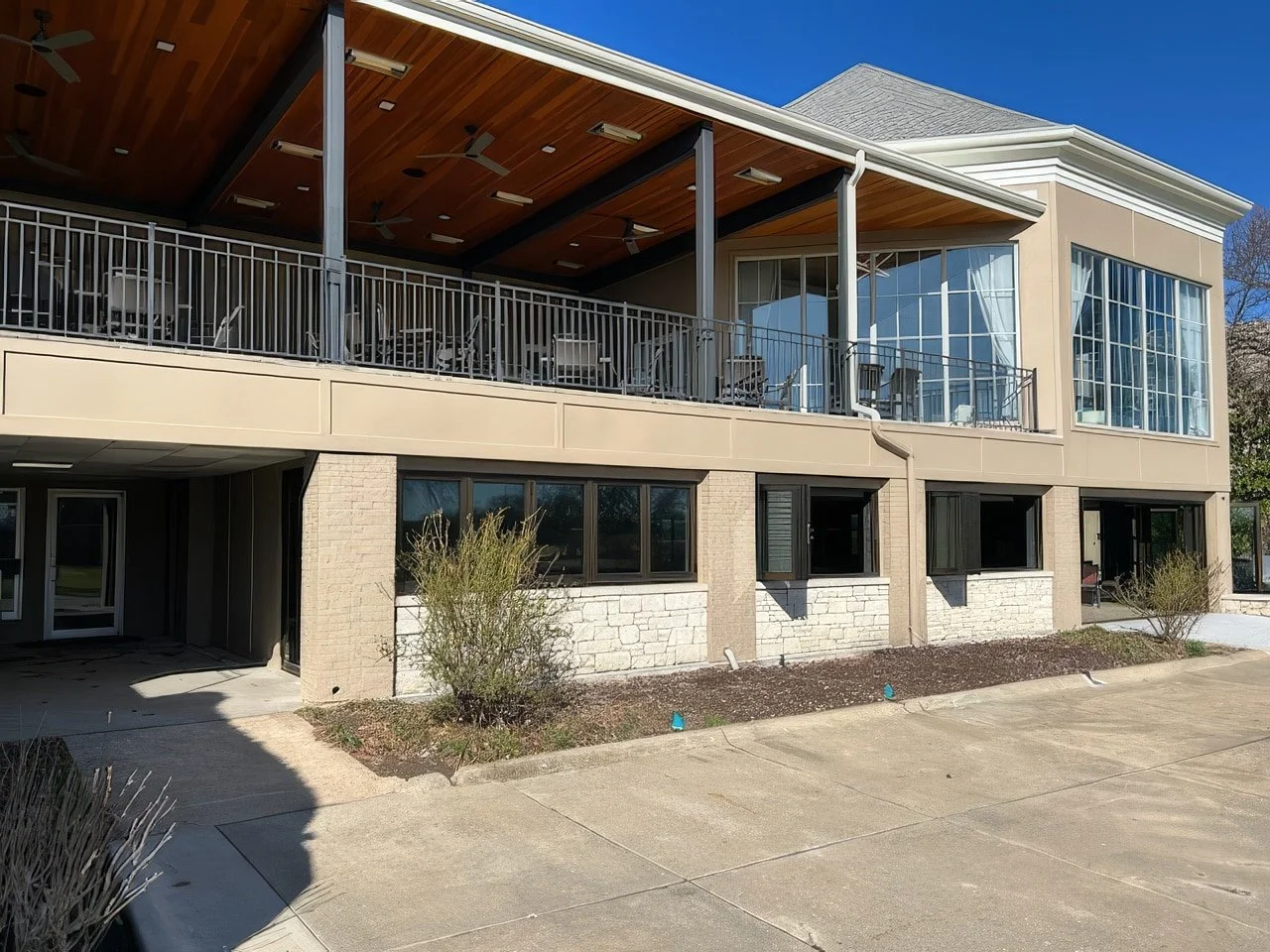

The Clubhouse
The Poolhouse
A Fenestration Package Built Around Hospitality Use
Country clubs, golf clubs, restaurants, event venues, and similar facilities depend heavily on flexible space. Dining rooms, patios, lounges, pool houses, and event areas often need to operate differently depending on the weather, the season, and the size of the gathering. That made bifold systems a natural fit for Meadowbrook Country Club.

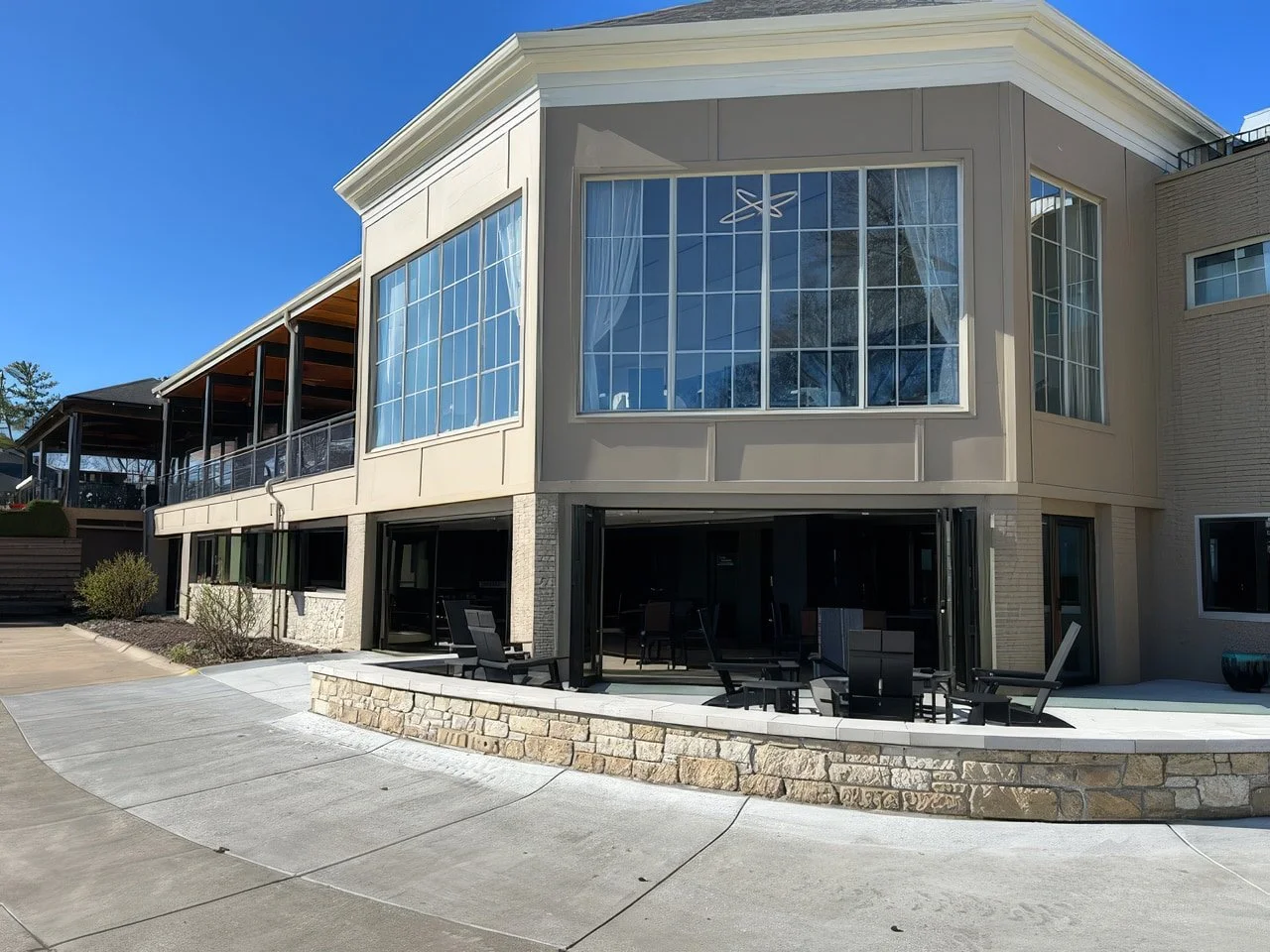

For the clubhouse renovation, Vetrina manufactured a large 7-sash bifold door assembly, multiple single doors with toplites, fixed window units, and mulled fixed window configurations.

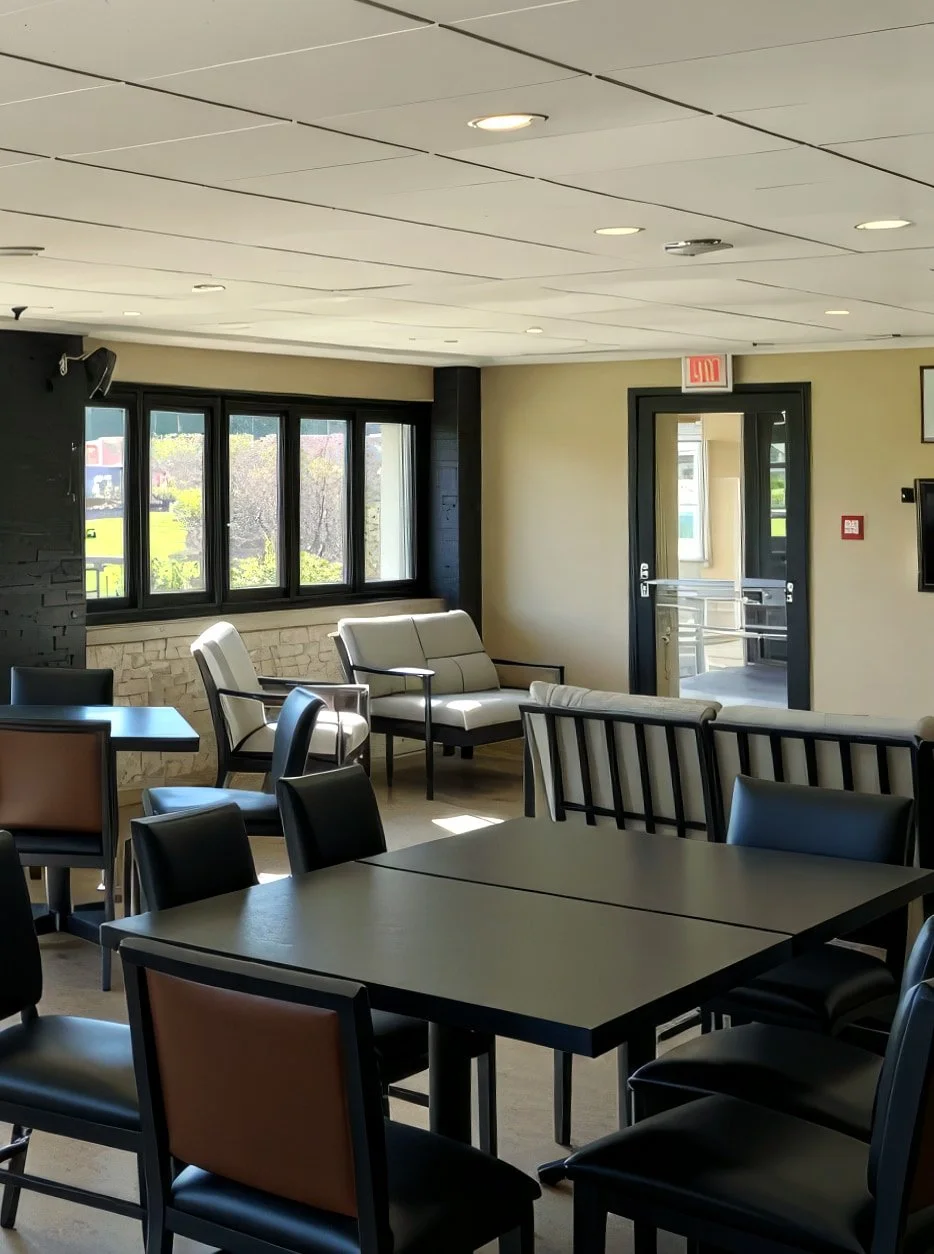

For the clubhouse expansion, the package included multiple bifold windows, two 5-sash bifold door systems, and a swing door made using our Millennium Series 70 entrance system with sidelite based on our Ardmore Series 70 aluminum window system.

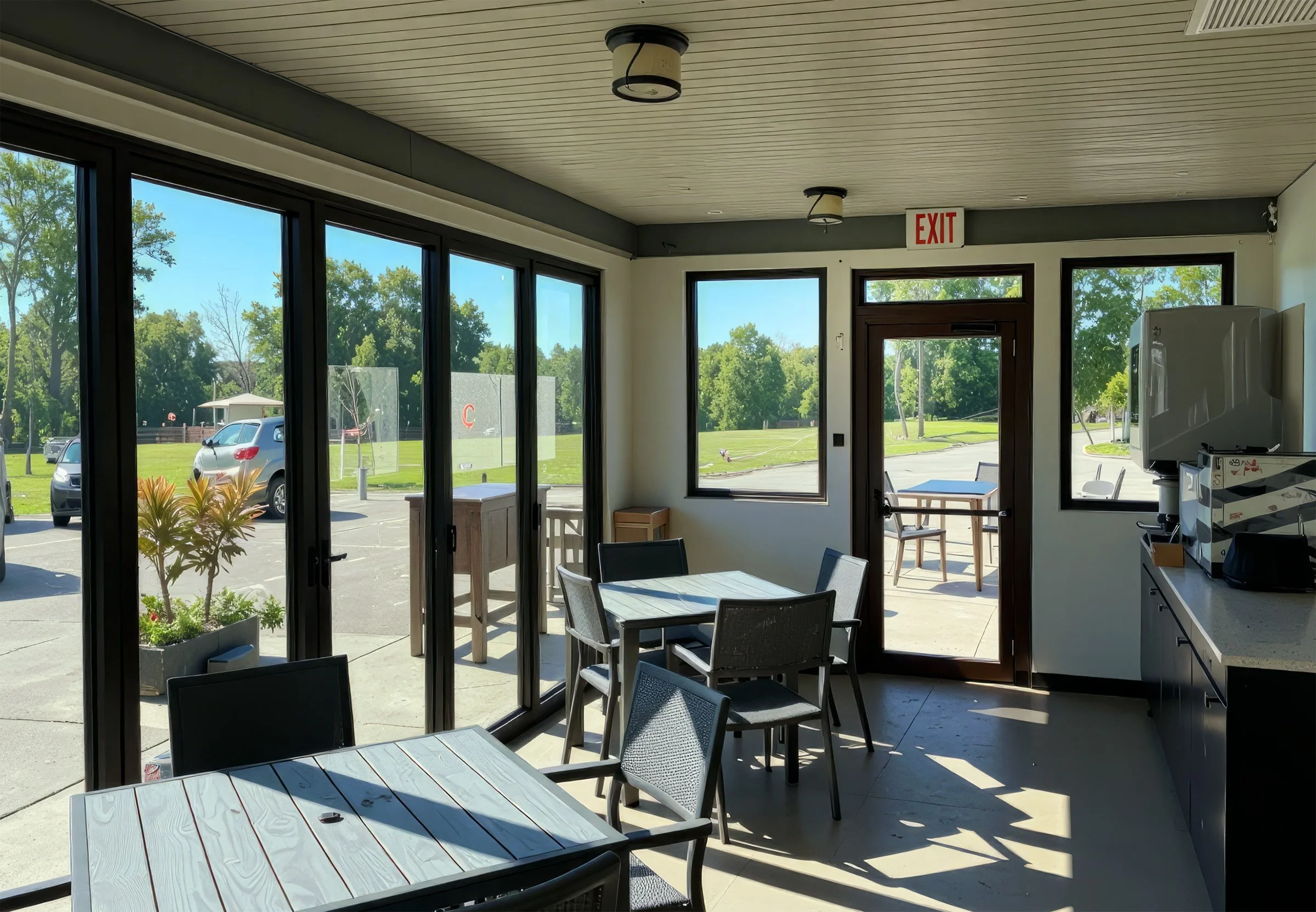

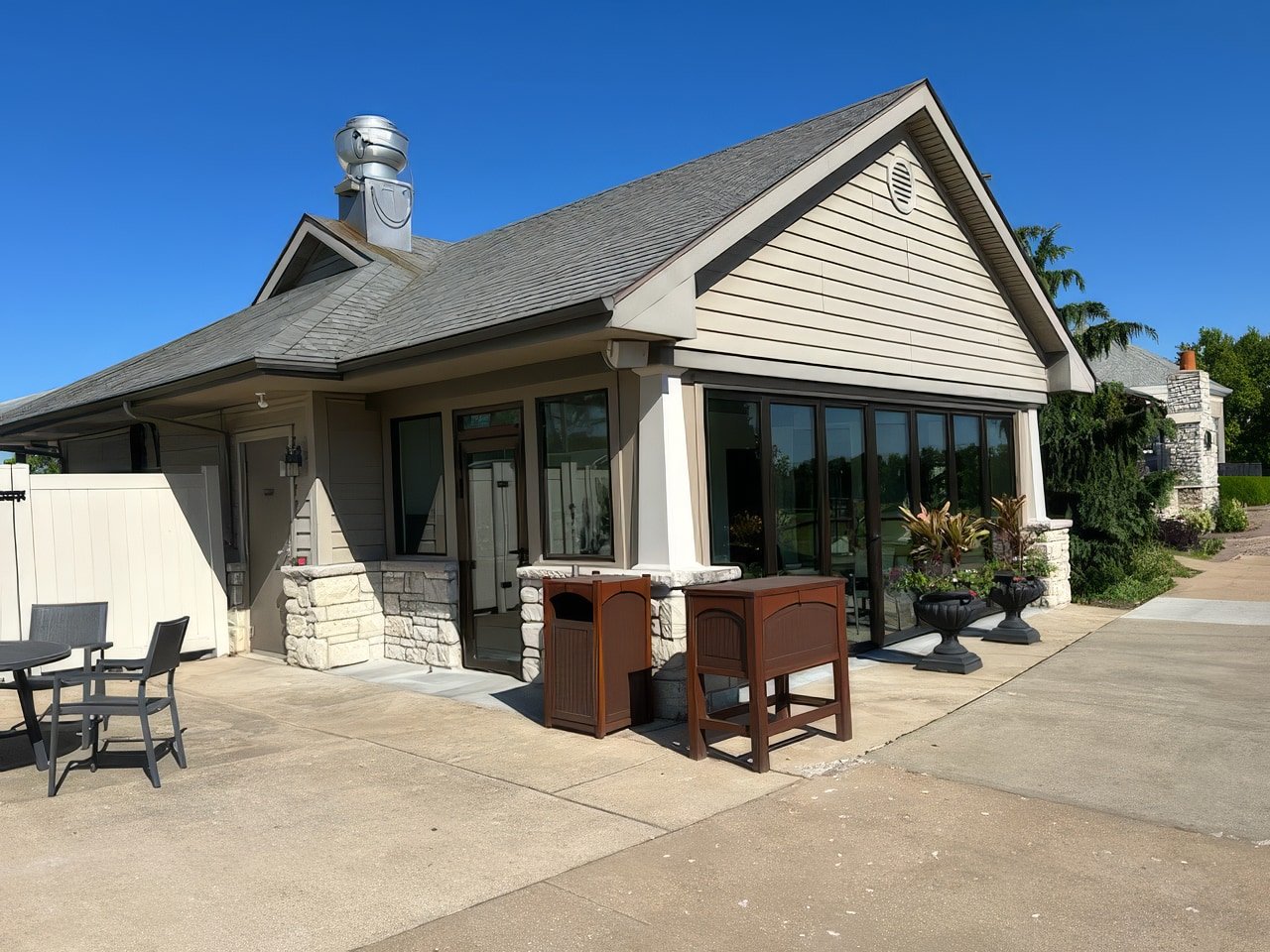

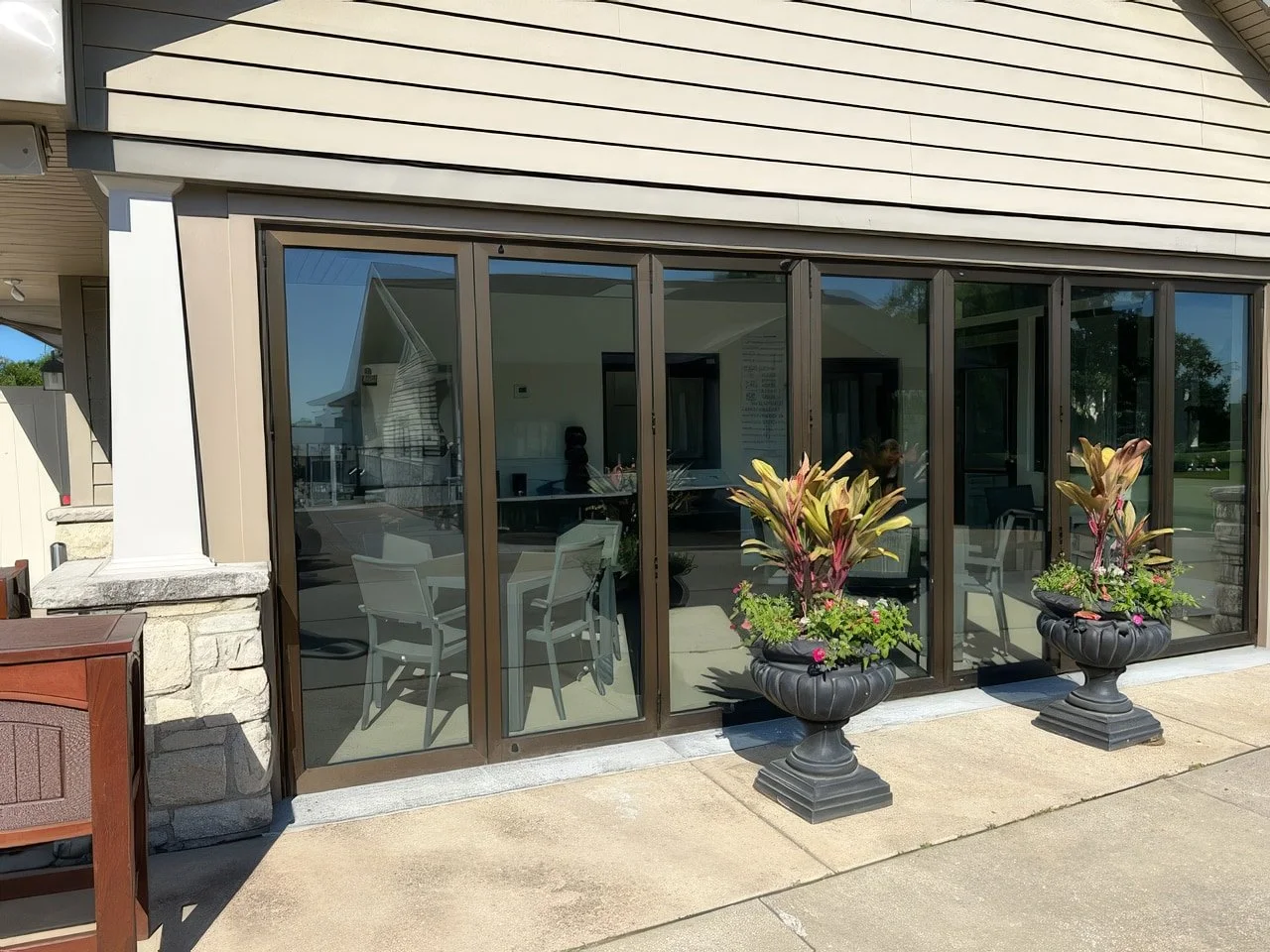

For the pool house, Vetrina manufactured swing doors with anti-panic hardware and electric strikes, a 3-sash bifold unit paired with fixed glazing, and fixed aluminum window units.
This mix of products allowed each area of the building to be treated according to its actual use. Large openings were created where indoor and outdoor spaces needed to connect. Fixed windows were used where daylight, visibility, and architectural consistency were the priority. Swing doors were specified where controlled access, egress, and hardware functionality were required.
Bifold Doors and Windows for Indoor-Outdoor Connection

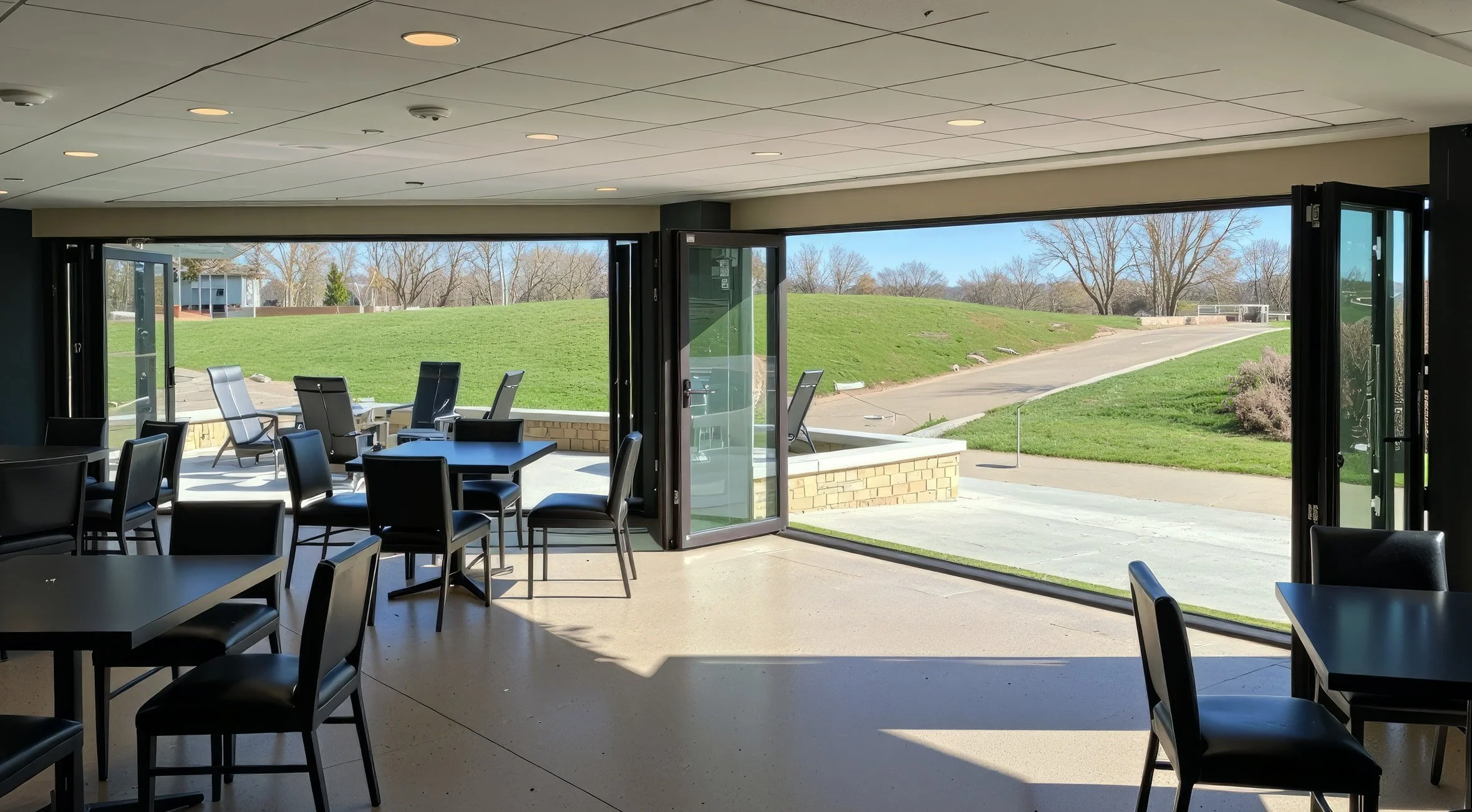

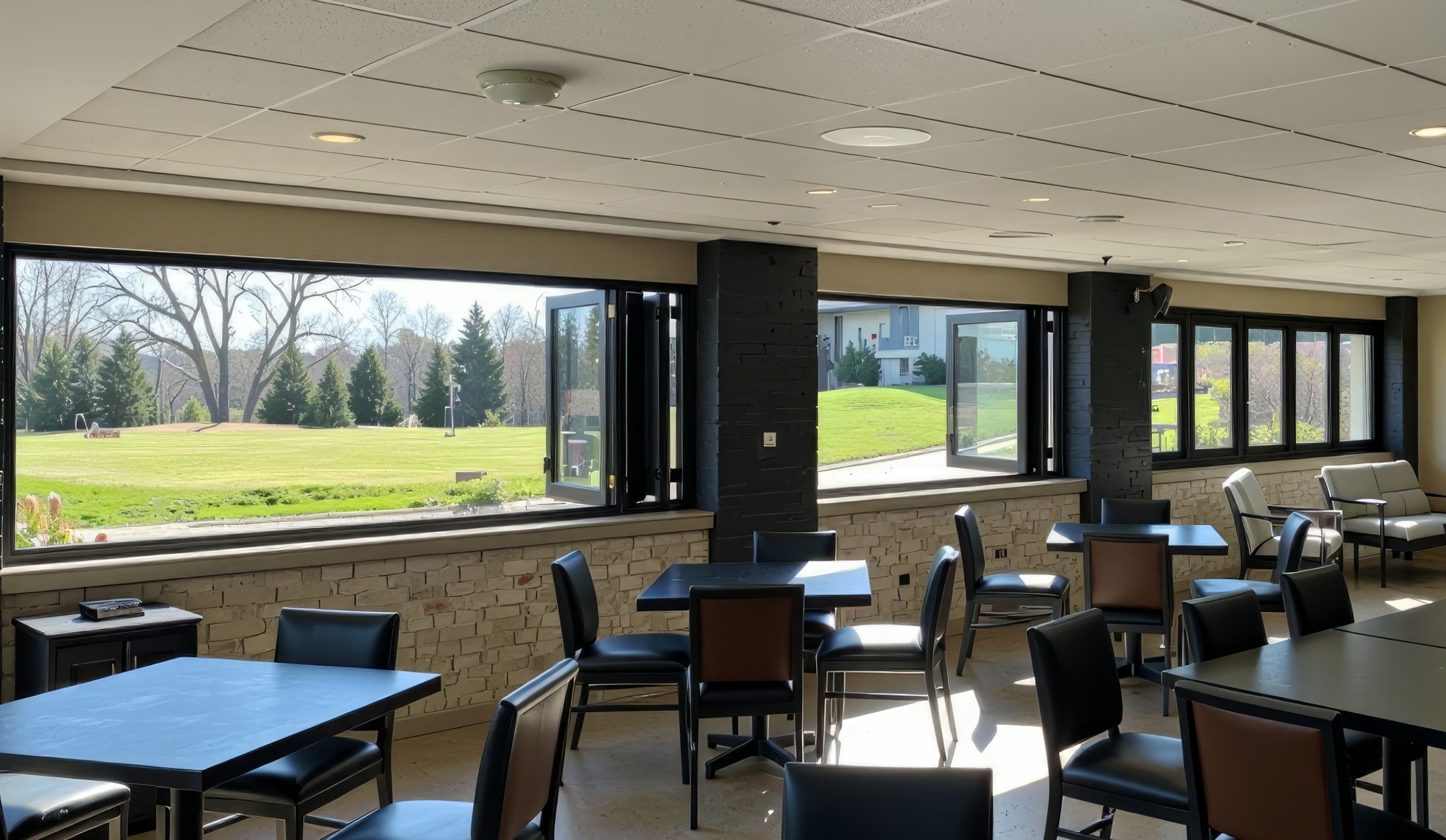

The bifold systems are the most visible part of the project. In the clubhouse and expansion areas, the large folding glass openings allow dining and gathering spaces to connect directly to patios, golf course views, and outdoor circulation areas.
For hospitality properties, this is a practical advantage. A bifold wall can be closed during cold, rainy, or windy weather, while still preserving natural light and views. During favorable conditions, the same opening can be folded away to create a much more open connection between the interior and exterior. This helps operators make better use of patios, terraces, pool areas, and event spaces.
Vetrina’s commercial aluminum bifold systems are designed as movable folding glass walls and can be configured for inward or outward operation, with systems accommodating multiple sash layouts. The system also allows extensive customization, including glazing options, threshold profiles, hardware configurations, powder coat finishes, and ADA-compliant threshold options where required.
At Meadowbrook Country Club, this flexibility was important because the project did not rely on one standard opening size or one repeated unit. The schedules included 3-sash, 4-sash, 5-sash, and 7-sash bifold configurations, as well as bifold windows and bifold doors. Each opening had to be designed and fabricated according to its specific location, operation direction, split, stack, and finished size.
Swing Doors With Anti-Panic and Access Hardware

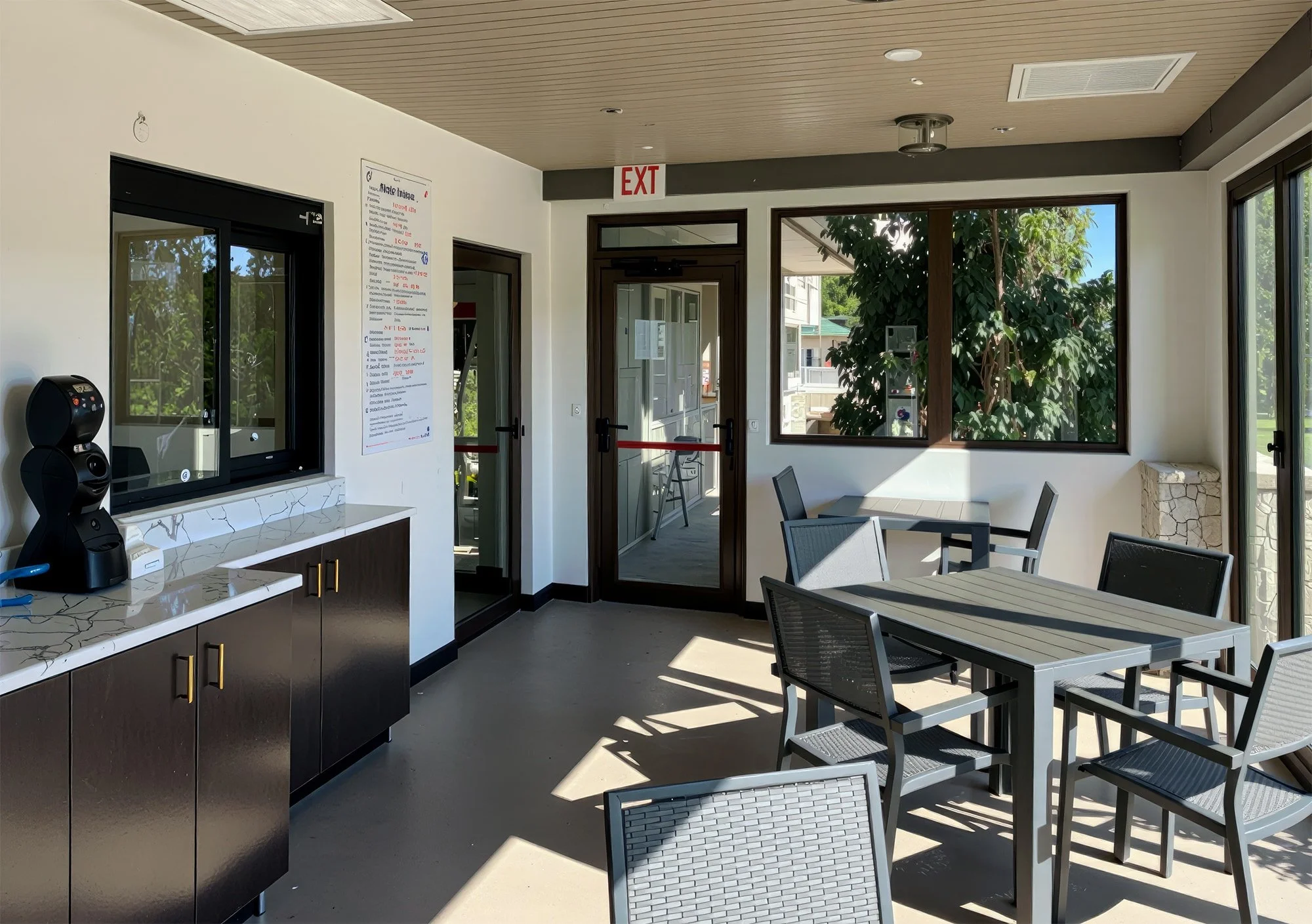

The pool house phase included swing doors with anti-panic push bars, anti-panic handles, and electric strikes. This is an important detail for club and hospitality facilities where doors are not only architectural elements, but also part of the building’s life-safety and access-control strategy.
Vetrina’s Millennium Series 70 aluminum glass door system is designed for busy commercial and public spaces, with configurations suitable for emergency exit use, ADA hardware, concealed hinge options, and high-cycle repeated use. The system can also be equipped with access control solutions, including electronic locks, smart locks, remote access, passcodes, and other security hardware options.
For a pool house, this type of door specification makes sense. The space has to accommodate members, staff, deliveries, maintenance access, and emergency egress. The doors need to be durable enough for daily use yet refined enough to match the rest of the building’s aluminum-and-glass package.
Fixed Aluminum Windows for Light, Views, and Visual Continuity
Fixed windows were used throughout the project where operability was not required, but daylight, views, and envelope performance remained important. In the clubhouse and pool house areas, fixed glazing helps maintain a consistent architectural rhythm while keeping the interiors bright and visually connected to the golf course and outdoor amenities.
Vetrina’s Delran Series 60mm aluminum window system features a 2 3/8" frame, polyamide thermal break, EPDM moisture gaskets, and customizable configurations including fixed, tilt, turn, hopper, casement, and specialty variants. The system is designed for commercial and residential applications where performance, flexibility, and clean aluminum sightlines are required.
For Meadowbrook Country Club, the fixed windows were part of a broader system approach. They were not treated as separate stock units, but as components in a coordinated fenestration package that had to align with doors, bifold systems, framing dimensions, finish requirements, and the overall building appearance.
Glass Package and Performance Considerations
The project schedules called for insulated glass units with an overall thickness of 1 1/8", using 1/4" exterior Guardian clear glass with SunGuard SN 68 low-E coating, a 5/8" aluminum spacer with argon-filled air space, and 1/4" interior clear glass.
For a facility like Meadowbrook Country Club, this type of glazing specification supports comfort and usability. Large glass openings can dramatically improve the experience of a clubhouse or pool house, but they must be designed with energy performance, glare, solar control, and durability in mind. Low-E insulated glass helps make larger openings more practical for real-world commercial use, especially in spaces that experience long hours of sun exposure and frequent seasonal temperature changes.
Why This Matters for Similar Properties
The Meadowbrook Country Club project is a good example of how custom fenestration can improve the function of an existing hospitality property without forcing every opening into the same standard solution. The clubhouse renovation, clubhouse expansion, and pool house each had different requirements, but the finished result needed to feel consistent across the property.
For owners and managers of country clubs, golf clubs, restaurants, event venues, pool facilities, and other hospitality properties, this is where custom aluminum systems can make a significant difference. Large bifold openings can increase the value and usability of outdoor-facing spaces. Fixed windows can improve daylight and views without adding unnecessary operation or maintenance. Commercial swing doors with panic and access hardware can support safety, security, and daily traffic.
For glaziers, builders, and developers, the advantage is coordination. A project like this requires accurate shop drawings, clear unit schedules, properly engineered configurations, hardware planning, finish consistency, careful glass specification, and reliable fabrication. When those details are handled correctly before the products arrive on site, installation becomes more predictable and the finished result is cleaner.
Manufactured in Bensalem, PA – Delivered Anywhere on Your Schedule
All of the custom fenestration products for Meadowbrook Country Club were manufactured by Vetrina Windows at our facility in Bensalem, Pennsylvania. The scope included large bifold door assemblies, bifold windows, commercial swing doors with specialty hardware, fixed aluminum windows, insulated glass units, and project-specific fabrication details.
For a project like this, manufacturing the units is only part of the responsibility. Moving heavy, oversized, and fragile aluminum-and-glass assemblies across the country requires the same level of planning as the fabrication itself.

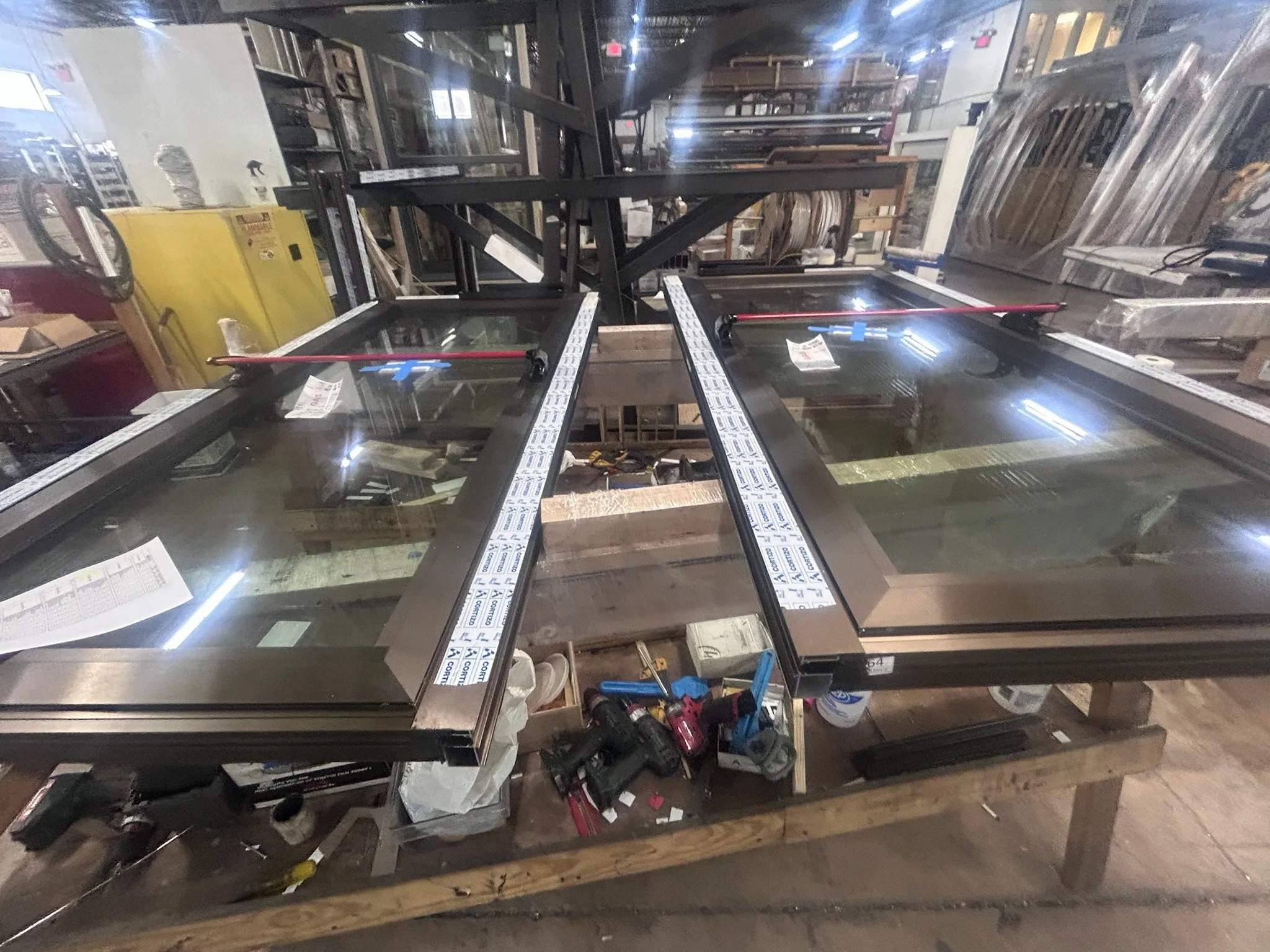

Each unit had to be protected, labeled, braced, and loaded in a way that preserved the frame alignment, protected the glass, and allowed the installer to identify and handle each component efficiently on site.

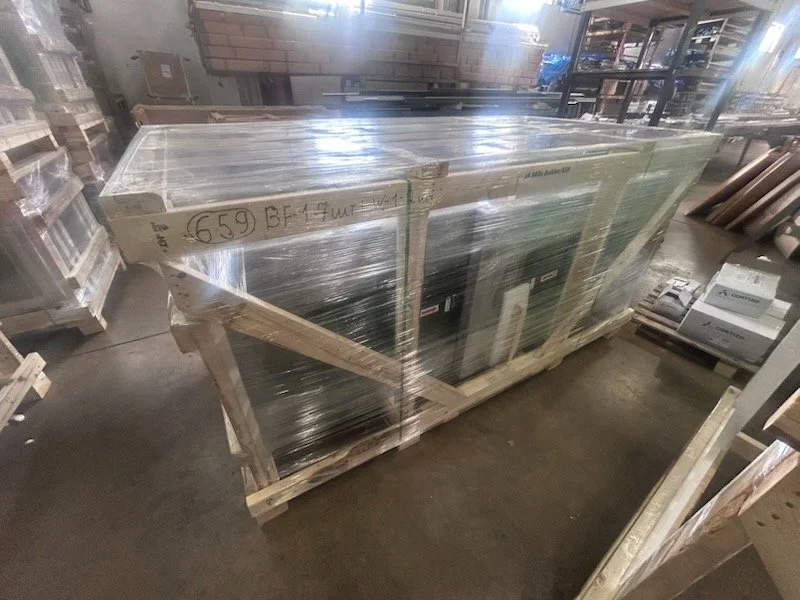

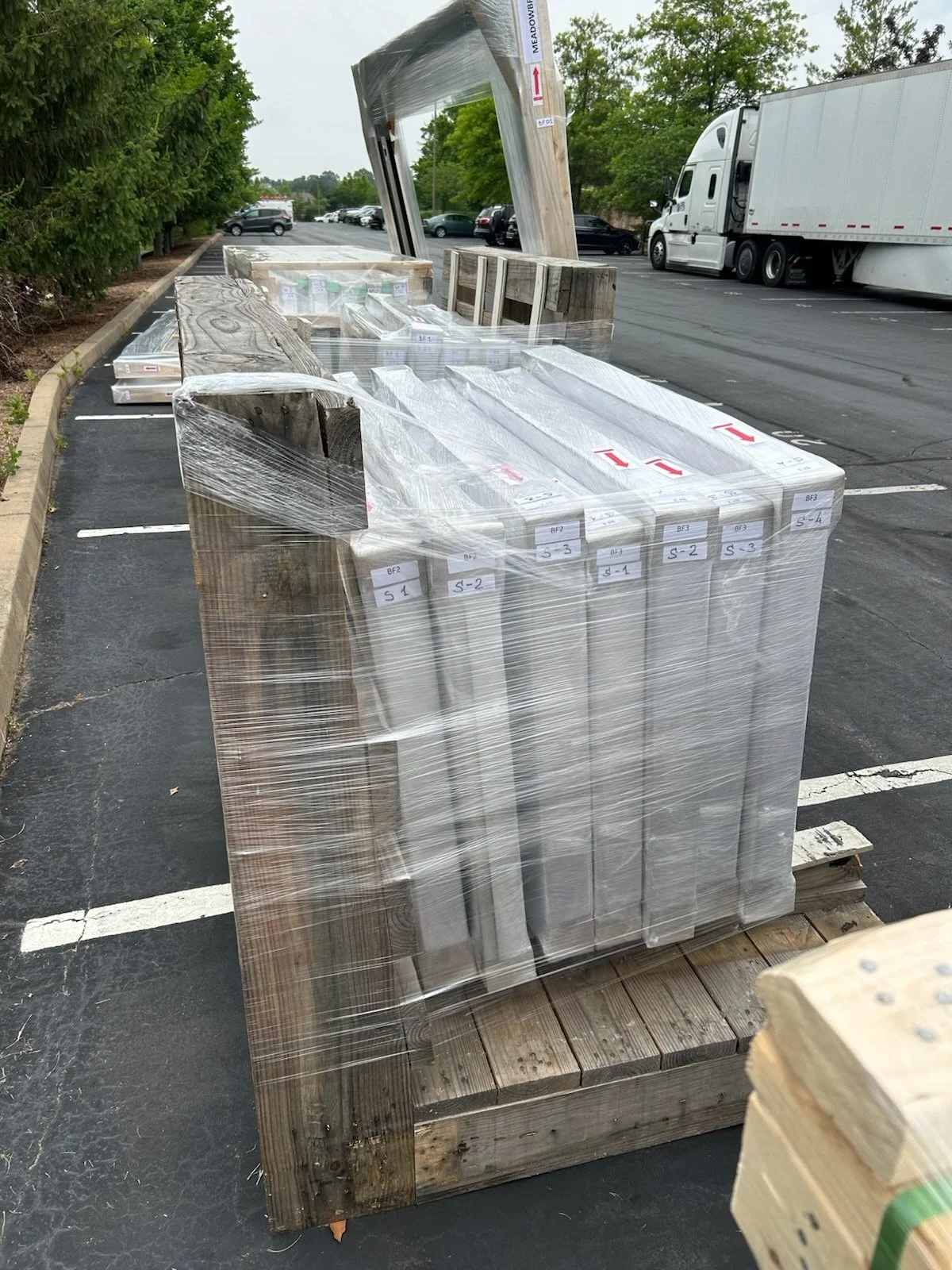

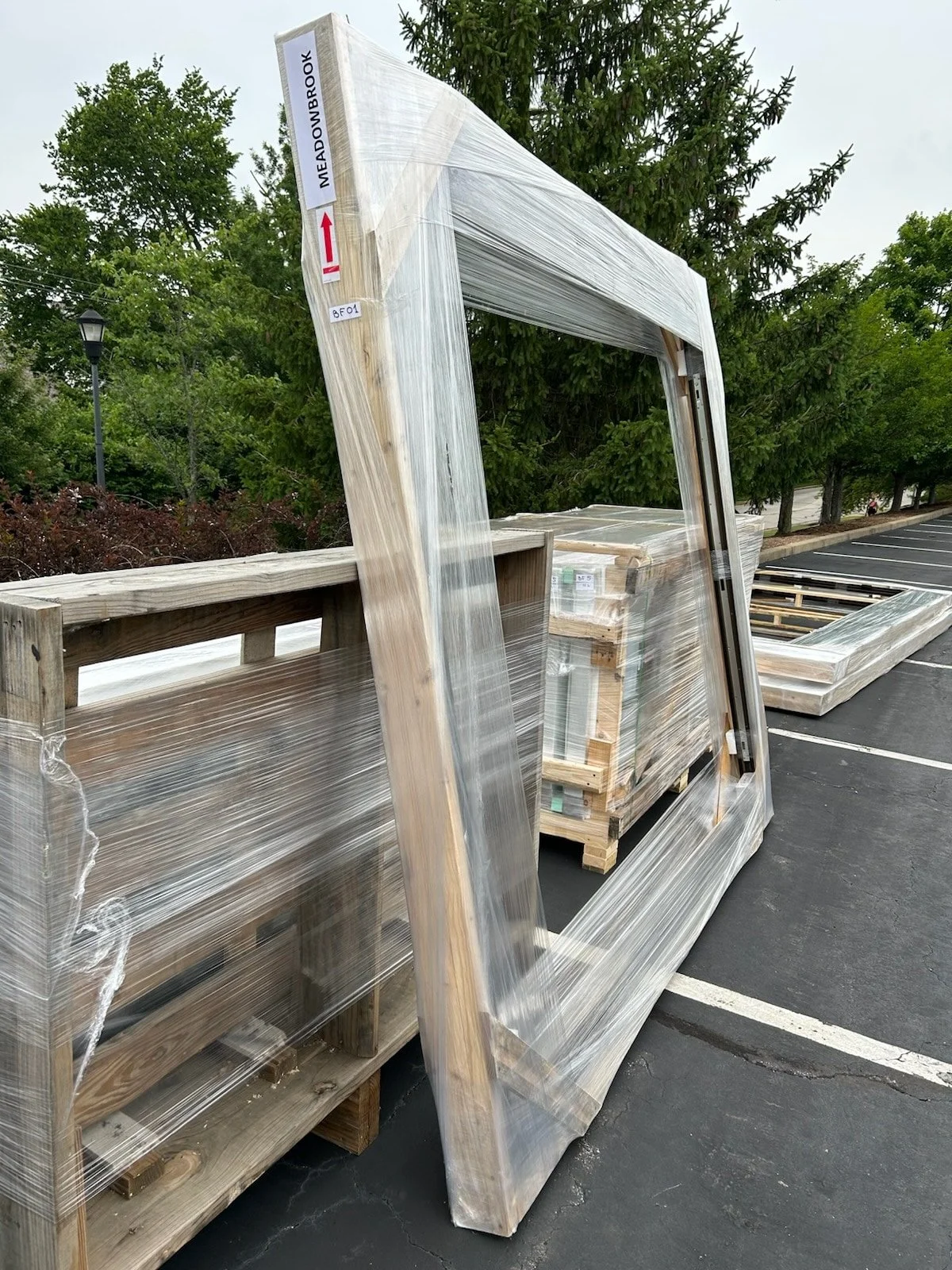

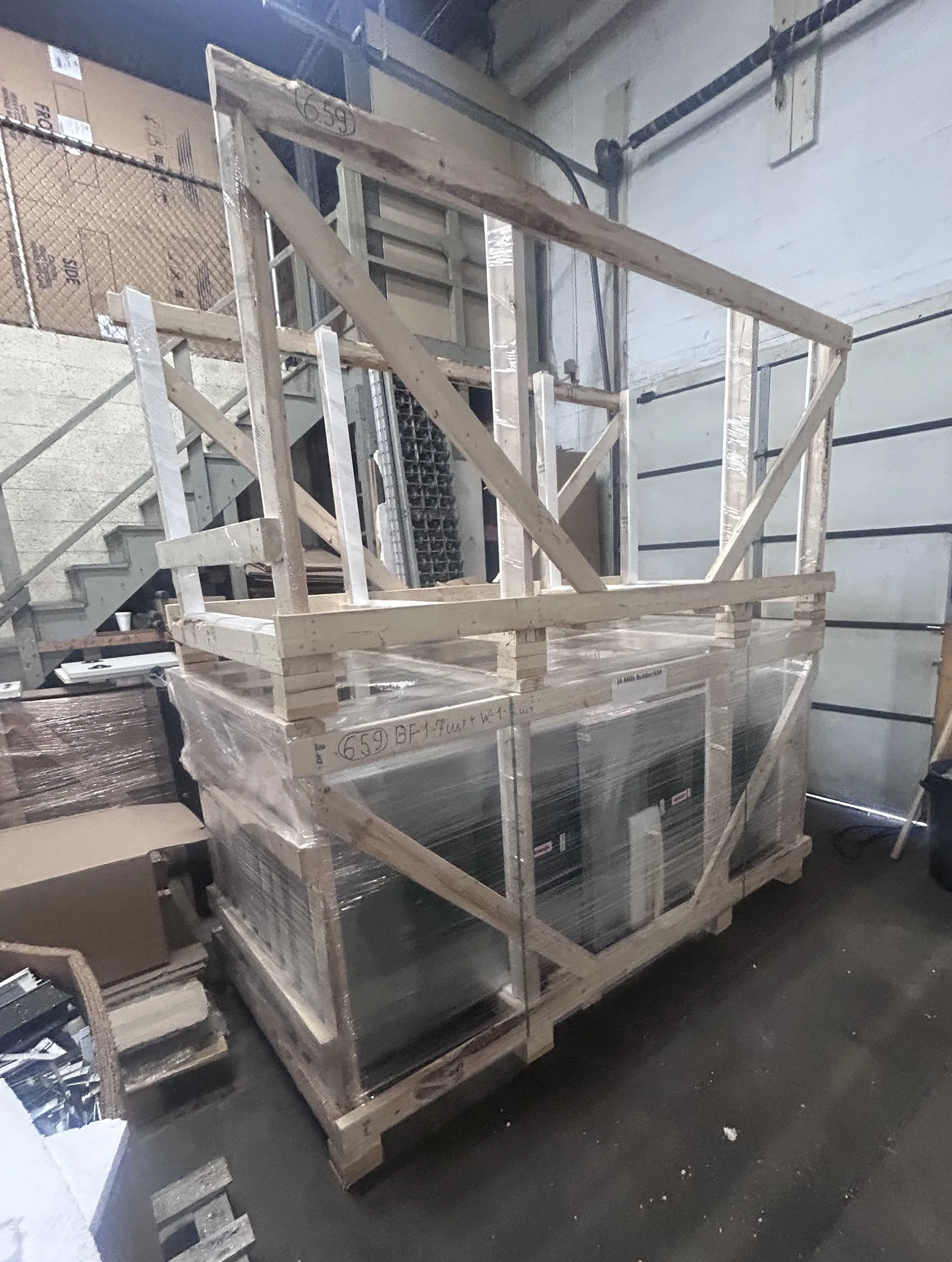

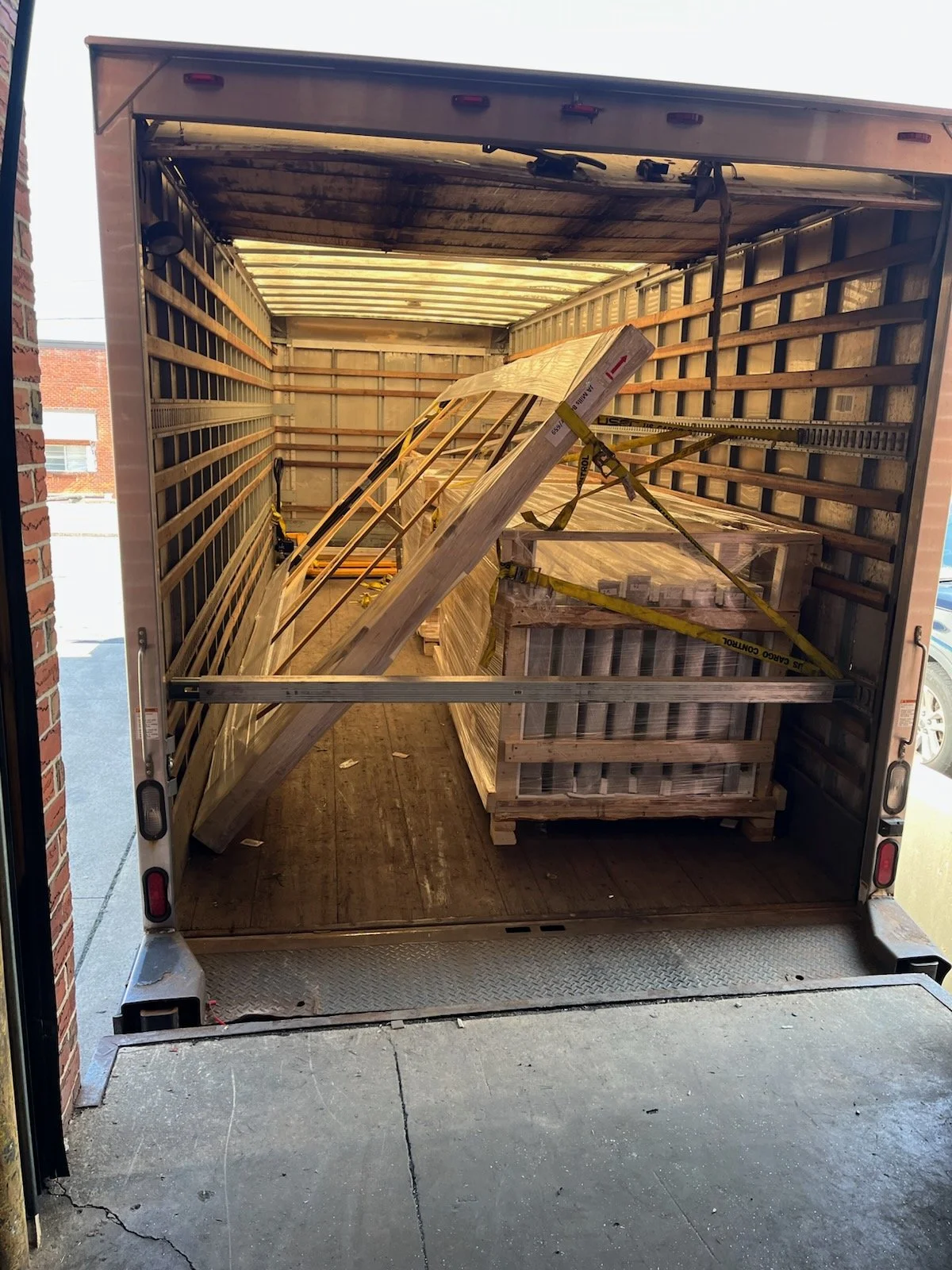

Vetrina prepared the Meadowbrook shipment using custom wood crating, reinforced pallets, protective wrapping, vertical support frames, unit labels, orientation markers, and secure truck loading. Large assemblies were braced to prevent movement during transit, while smaller components and hardware were grouped and marked according to the project schedule.
This type of packaging is especially important for bifold systems, where frame geometry, track alignment, sash protection, and hardware organization all affect the final installation.
By controlling the manufacturing, packaging, and delivery process from our Bensalem facility, Vetrina was able to ship a complex, multi-phase fenestration package safely and in accordance with the project schedule.
For owners, builders, glaziers, and developers, that coordination matters. The product has to be well designed, but it also has to arrive complete, protected, organized, and ready for installation.
For commercial properties that need custom fenestration without unnecessary delays or uncertainty, Meadowbrook Country Club is a clear example of Vetrina Windows’ ability to design, manufacture, package, and deliver a complete aluminum window and door package for a multi-phase project.
