Custom Aluminum Sliding Windows for the UMBC Stadium Press Box

PROJECT SCOPE

Type: Facilities - Sports Complex
Location: 5523 Research Park Dr., Lansdowne, Baltimore, MD 21227
Age of Structure: Renovation
Window System: V-4200 Sliding System
Installer: Ridgeview Glass Inc.

A stadium press box depends on its connection to the field. Broad views help staff follow the action, while operable windows provide flexibility for broadcasting, ventilation, and event operations. At UMBC Stadium, Vetrina Windows manufactured custom aluminum sliding windows that bring these requirements together within a clean, coordinated exterior.

The project demonstrates how precise fabrication, thoughtful opening configurations, and carefully specified materials can support a specialized university facility.

Windows Designed Around Stadium Operations

Located at the University of Maryland, Baltimore County’s campus in Baltimore, Maryland, UMBC Stadium underwent a major renovation between 2021 and 2023. The improvements included a new press box with multiple broadcast booths and a VIP area, alongside upgraded seating and spectator access.

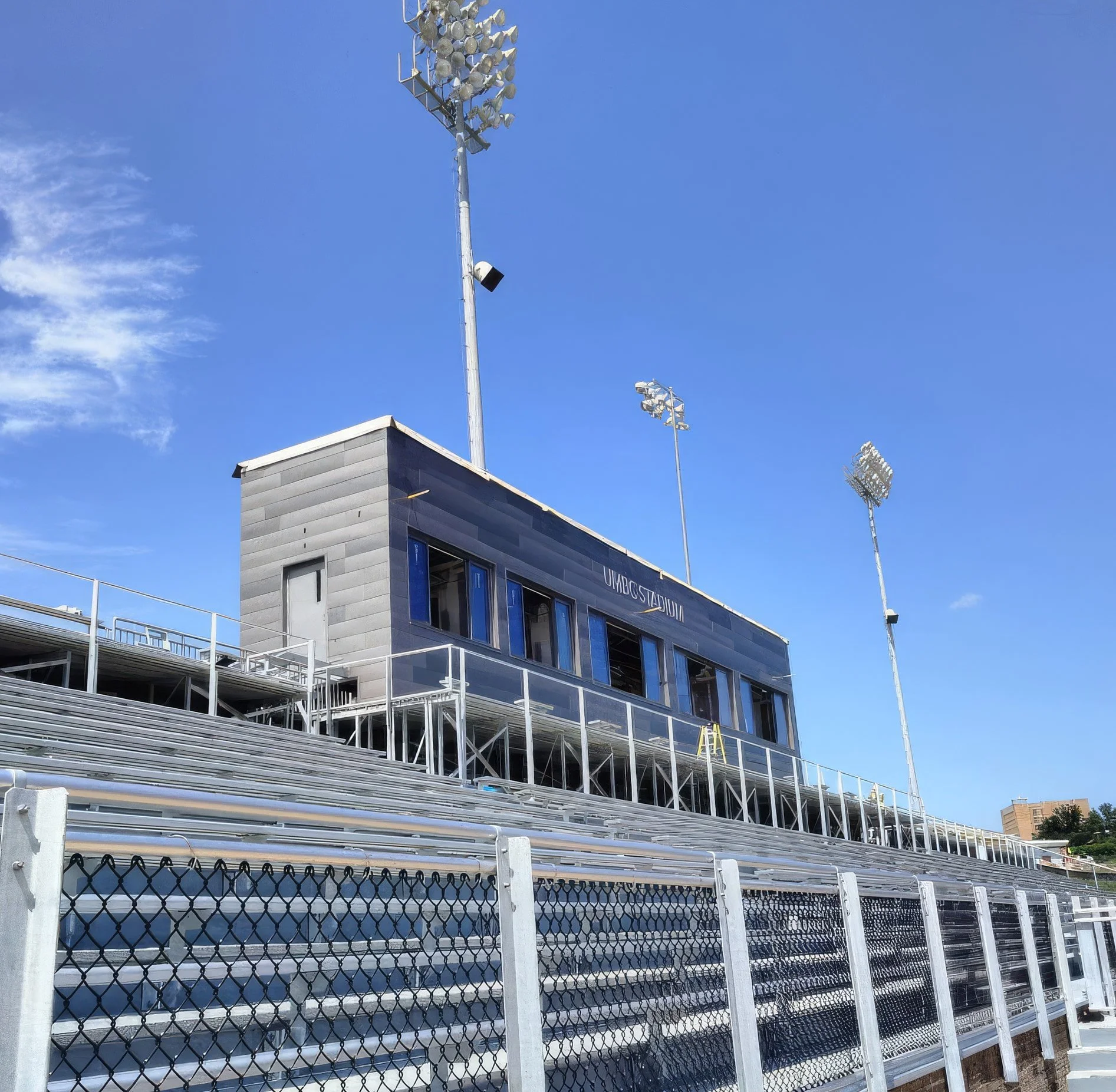

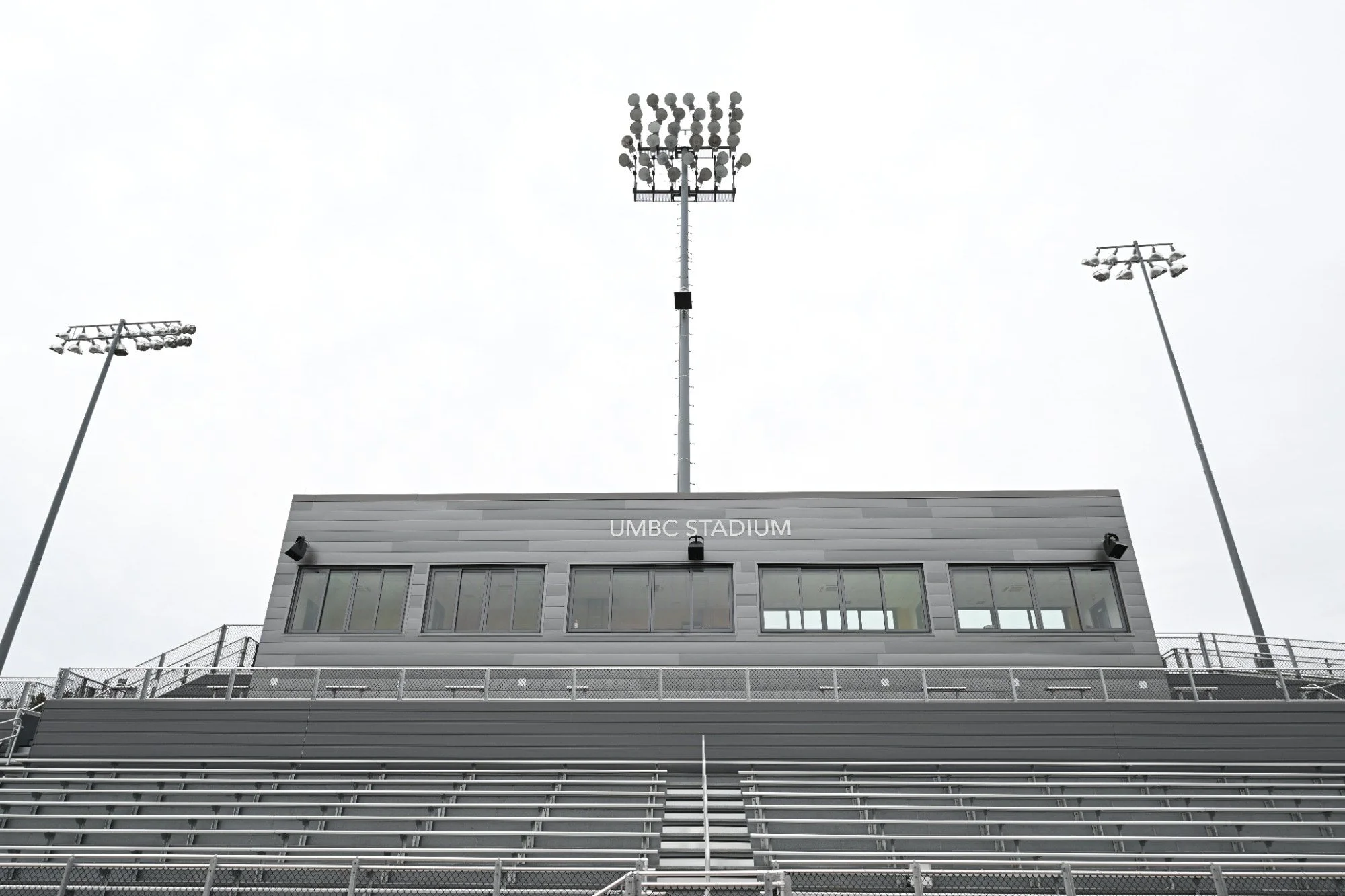

Positioned above the bleachers, the press box overlooks the playing field and surrounding track. Its long, horizontal form places the windows at the center of both the architecture and the building’s purpose.

Vetrina’s window package, installed by a local installer Ridgeview Glass, comprises seven four-panel sliding assemblies in five custom sizes. The largest frames span 14 feet, providing generous glazed openings within the building’s metal-clad exterior.

Vetrina V-4200 Sliding Windows: Broad Views and Practical Operation

UMBC selected Vetrina’s V-4200 sliding system for its stadium press box. This versatile aluminum system accommodates multiple sash arrangements and thermally broken profiles.

For UMBC, each assembly uses four glazed panels with two operating center sashes. These sashes slide apart toward the sides, creating a broad central opening without a permanent center mullion dividing the open space.

That configuration provides several advantages for a press box:

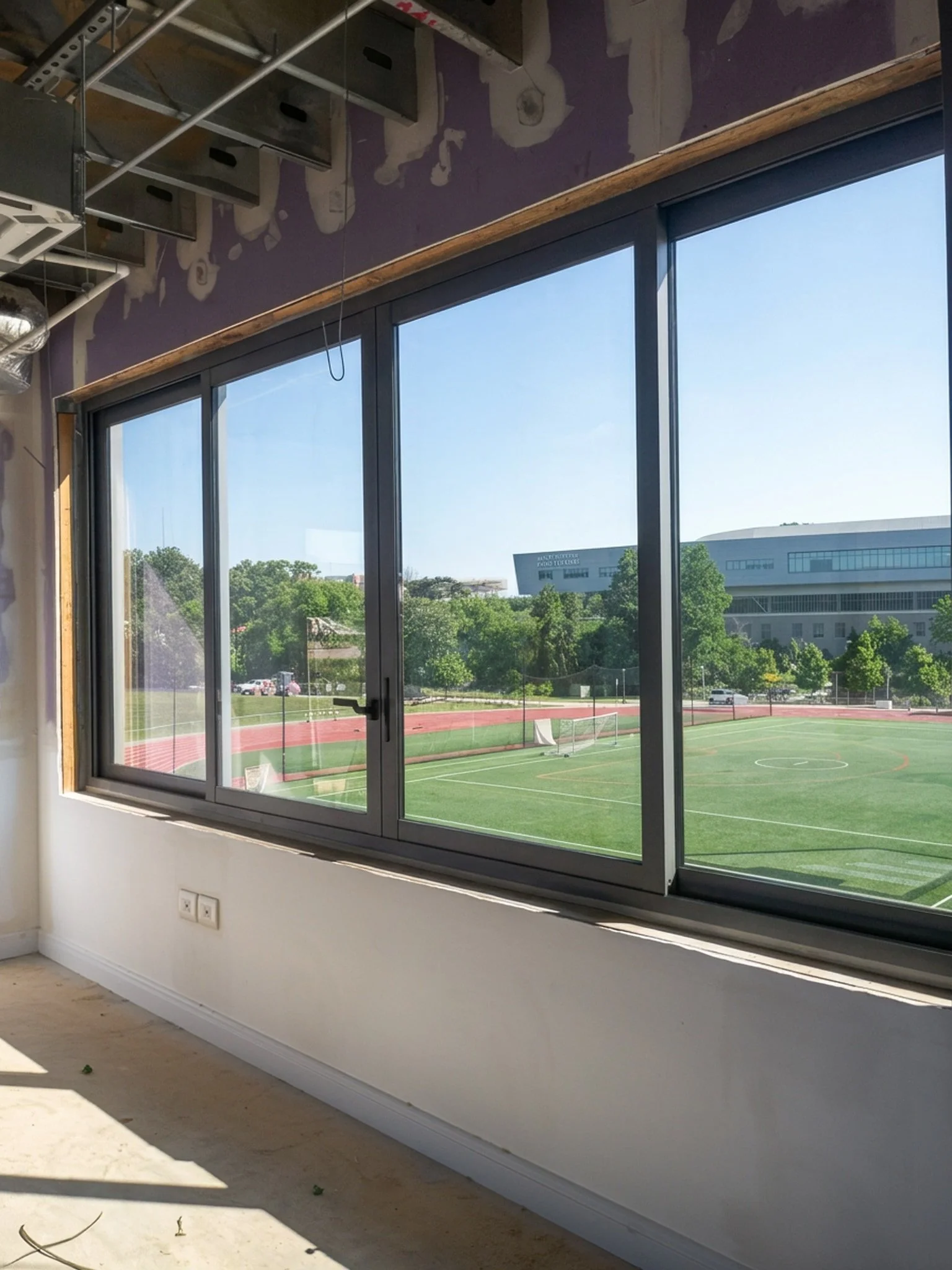

  • Direct views through the open center. Retracting the operating sashes removes glass from the central viewing area, creating a useful opening for observation or camera positioning as needed.

  • Clearance around workstations. Horizontal sliding operation keeps sash movement within the frame, preserving space for desks, equipment, and circulation.

  • Adjustable ventilation. Staff can vary the opening to introduce outdoor air when conditions and operations permit.

  • A consistent exterior. The same four-panel arrangement repeats across different opening sizes, giving the façade a coherent appearance.

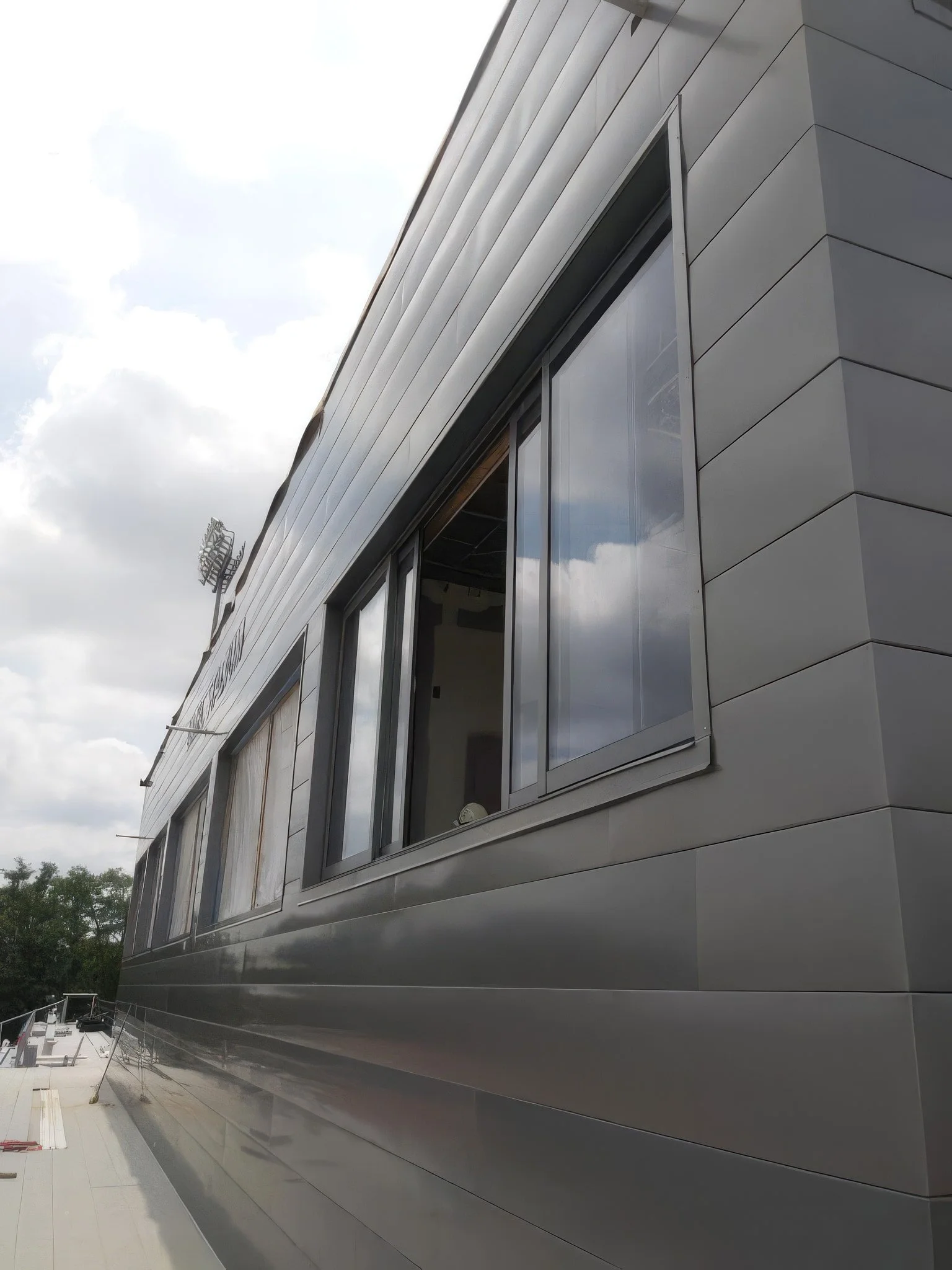

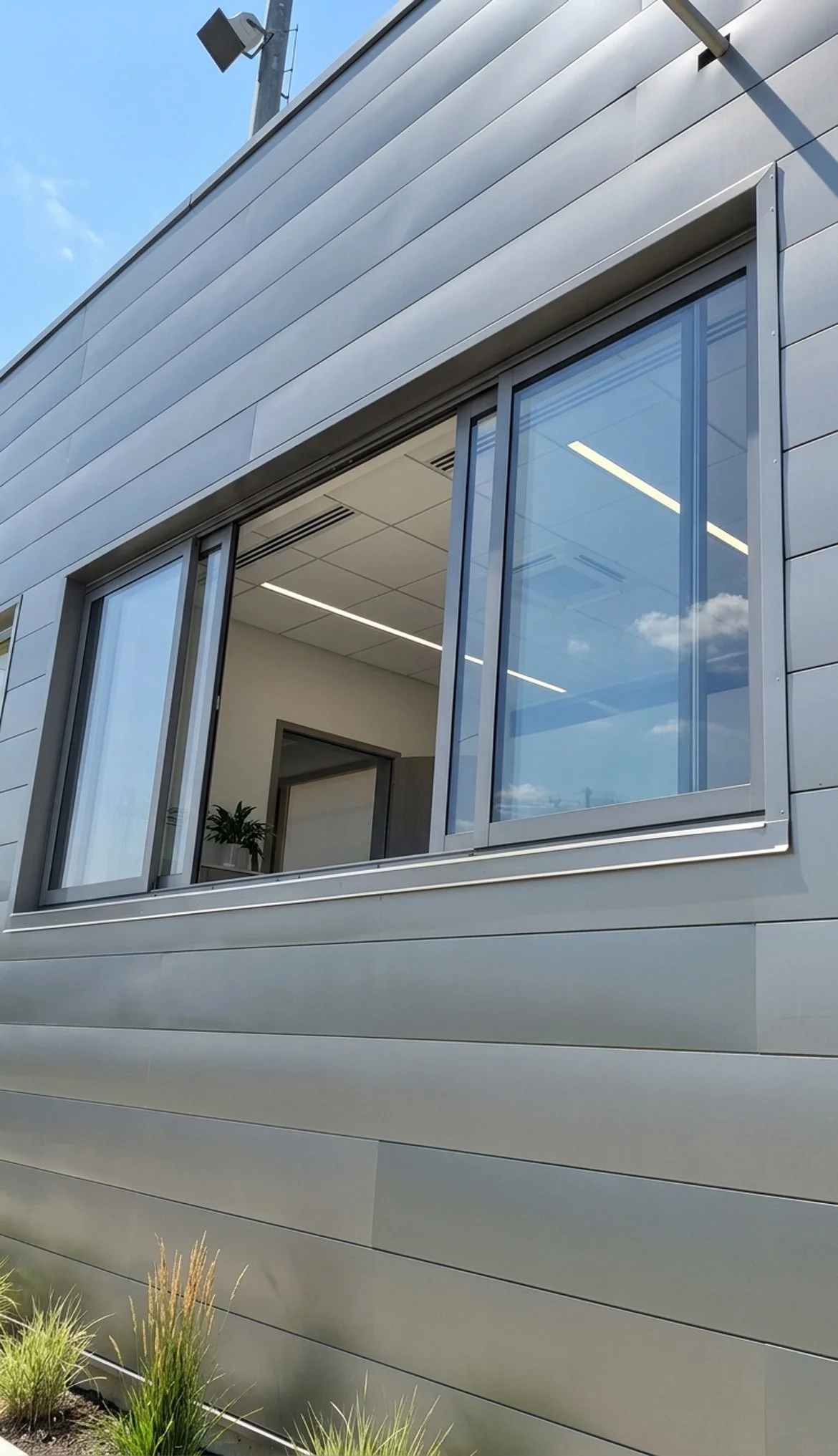

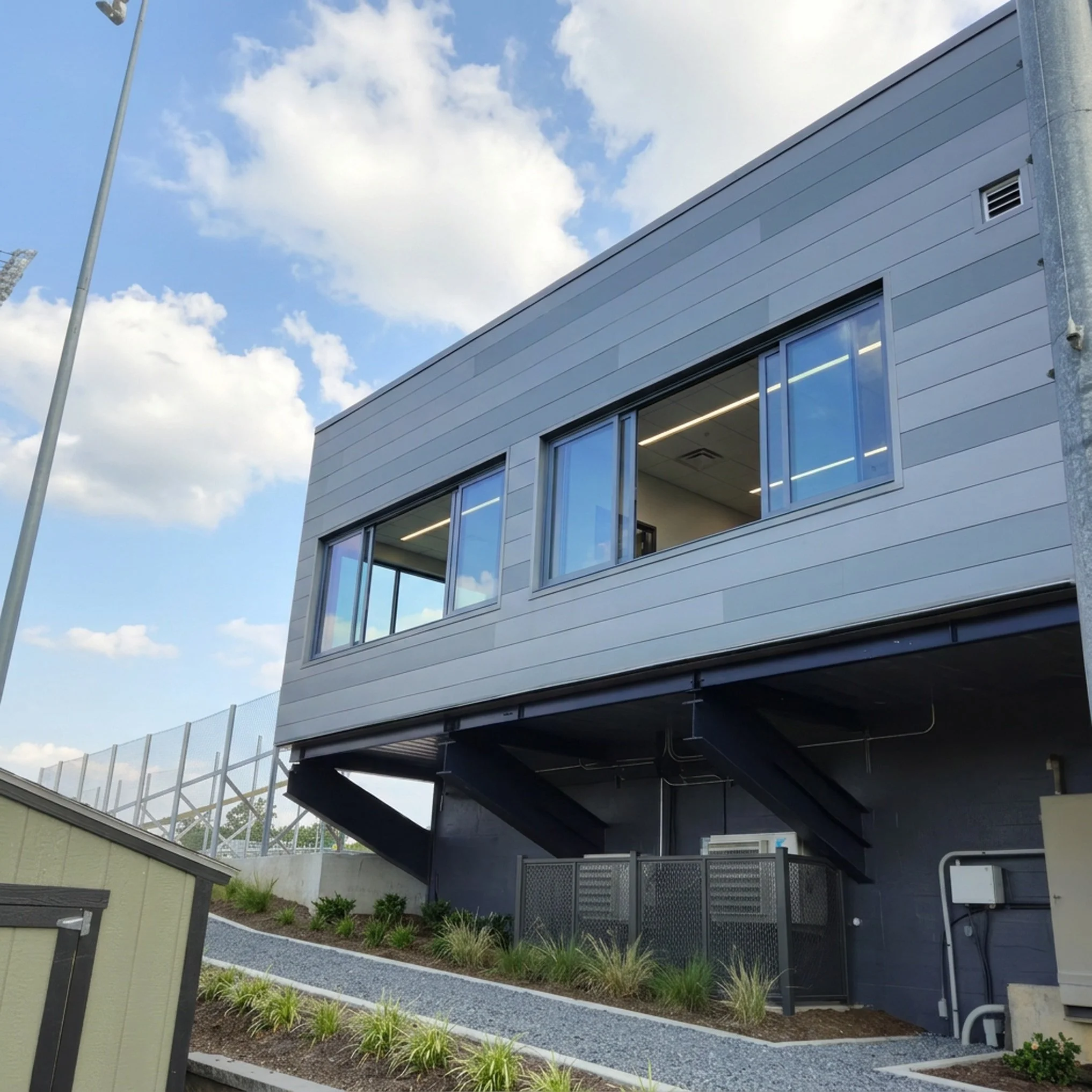

The project photographs show this flexibility clearly: closed assemblies provide expansive glazed views, while open assemblies create a direct connection between the interior and the stadium surroundings.

Cutaway of the V-4200 aluminum sliding system showing glazing, frame chambers, and sliding track.

Vetrina V-4200 Sliding Window and Door System

The Vetrina V-4200 sliding system gives architects and commercial project teams a flexible aluminum solution for large glazed openings, combining generous daylight and views with horizontal operation that preserves usable interior space.

Available configurations include two, three, four, or six sashes, with single-, double-, and triple-track options. Individual sashes can measure up to 86 inches wide by 102 inches high, while the system accommodates glazing up to 1 inch thick. Polyamide thermal breaks and dual-sealed warm-edge spacers support thermal performance, and specifications include an AW-PG30 classification.

Options such as wall pocketing, different interior and exterior colors, insect screens, and ADA hardware allow the system to respond to varied commercial and institutional requirements.

Five Custom Sizes, One Coordinated Window Package

The window schedule shows the precision required to manufacture a specialized structure. Although the assemblies share a common operating layout, their dimensions respond to individual openings.

UMBC Stadium Window Schedule
Window Designation Quantity Overall Frame Width × Height
V-4200 Slider #1 1 168″ × 70⅛″
V-4200 Slider #2 2 168″ × 70¾″
V-4200 Slider #3 2 167¼″ × 70¾″
V-4200 Slider #4 1 120″ × 70¾″
V-4200 Slider #5 1 118⅝″ × 70¾″
Total 7 Five custom sizes

Small dimensional differences matter. Two assemblies can look nearly identical from the stands but require different frame widths, sash dimensions, and glass sizes.

For architects and glazing contractors, this capability matters: Vetrina can maintain a consistent architectural design while manufacturing assemblies to the dimensions documented for each opening.

Insulated Low-E Glazing for Daylight and Comfort

Large windows contribute daylight and visibility, but their glazing also influences comfort inside an occupied press box.

The UMBC project specified 1-inch insulated glass units comprising:

  • ¼-inch clear tempered glass with an SN68 low-E coating.

  • A ½-inch argon-filled cavity.

  • ¼-inch clear tempered interior glass.

This combination addresses several needs within the structure. The low-E coating helps control heat transfer and solar gain while retaining a clear appearance suited to field observation. The argon-filled cavity improves the glass assembly's insulation, and the thermally broken aluminum profiles reduce heat conduction through the framing.

The SN 68 glass combines high visible-light transmission with solar control and a neutral appearance. Those characteristics suit a building where the view is essential, and occupants work close to large glazed openings.

The result is a specification that treats the press box as an occupied workspace, addressing daylight, visibility, and thermal comfort together.

Pearl Dark Gray Aluminum Frames for an Exposed Setting

For the UMBC press box’s windows, Vetrina Windows delivered RAL-9023M Pearl Dark Gray frames, black hardware, and powder coating to meet AAMA 2605 requirements.

The coating requirement also serves a practical purpose. AAMA 2605 addresses demanding exterior coating performance, including resistance to weathering, fading, and chalking.

For university facilities teams, specifying the finish alongside the window system helps account for appearance and long-term exterior exposure from the outset.

Construction Coordination

Vetrina’s contribution extends into the documentation needed to coordinate fabrication and installation. The UMBC drawing set our engineers prepared included individual window elevations, frame and rough-opening dimensions, sash and glass sizes, operating directions, and detailed head, sill, jamb, interlock, and center-meeting sections. It also identified field-installed perimeter seals, backer rod, shims, and fasteners to guide installers’ work.

This level of detail gives the project team a defined basis for reviewing how the windows fit, operate, and connect to the surrounding construction. For glazing contractors and general contractors, it supports coordination between the manufactured assemblies and the building envelope, and we pay special attention to that.

At UMBC Stadium, Vetrina’s fenestration design and manufacturing capability is evident in expertly constructed large custom windows, repeatable detailing, and opening configurations suited to the building’s daily use.

Plan Your Next Institutional Window Project With Vetrina

Press boxes, athletic facilities, and university buildings require windows that meet specific operational needs and regulatory codes. Opening size, sightlines, sash movement, glazing, finish, and installation interfaces all influence the final result.

Vetrina’s UMBC Stadium project demonstrates our ability to turn those decisions into a coordinated custom aluminum window package that has served the campus for years.

Planning a facility, campus, or commercial project? Contact Vetrina with your drawings and window schedule to discuss custom sizes, operating configurations, glazing, and finishes.
