Private Residence in Vienna, VA | Ardmore 70mm Aluminum Window Replacement
PROJECT SCOPE
Type: Private Residence
Location: Vienna, VA
Renovated: 2026
Area of Focus: Complete Fenestration Package
Window Types: Ardmore Series 70, Tilt & Turn Windows
Replacing older residential windows does not necessarily mean reproducing the same window technology that was originally installed. At this private residence in Vienna, Virginia, Vetrina Windows designed and manufactured a complete package of 21 custom Ardmore Series 70mm aluminum windows, replacing the home's original double-hung windows with a combination of high-performance tilt & turn and fixed units.
The project demonstrates how modern thermally broken aluminum fenestration can be incorporated into a traditionally styled home while improving functionality, comfort and architectural flexibility.
21 Custom Windows Designed for the Existing Home
Rather than working from standard stock sizes, Vetrina produced each window according to the openings and requirements of the residence.
The final package included a combination of tilt & turn windows and fixed windows, with operable units prepared for screens. The tilt & turn windows were also ordered with microventilation, providing an additional ventilation position for controlled airflow without requiring the sash to be fully opened.
The window packaged for this project was built based on Vetrina’s Ardmore Series 70mm aluminum window design
21 custom-manufactured window units
2-3/4" (70mm) aluminum frame system
Thermally broken 6063-T5 extruded aluminum frame and sash profiles
Mix of tilt & turn and fixed configurations
Microventilation on operable windows
Screens for operable units
Dual-color aluminum profiles
White interior finish
Anthracite exterior finish
1-1/8" insulated glazing with Low-E glass, argon-filled air space and black spacer
AW-PG70 performance rating specified for the system
The result is a window package designed around the architecture of the house rather than forcing the residence to accommodate predetermined window sizes or configurations.
Dual-Color Frames for Interior and Exterior Design
One of the most useful features of custom aluminum windows is the ability to specify different colors for the interior and exterior surfaces.
For the Vienna residence, the homeowners selected a white interior frame and a dark anthracite exterior finish.

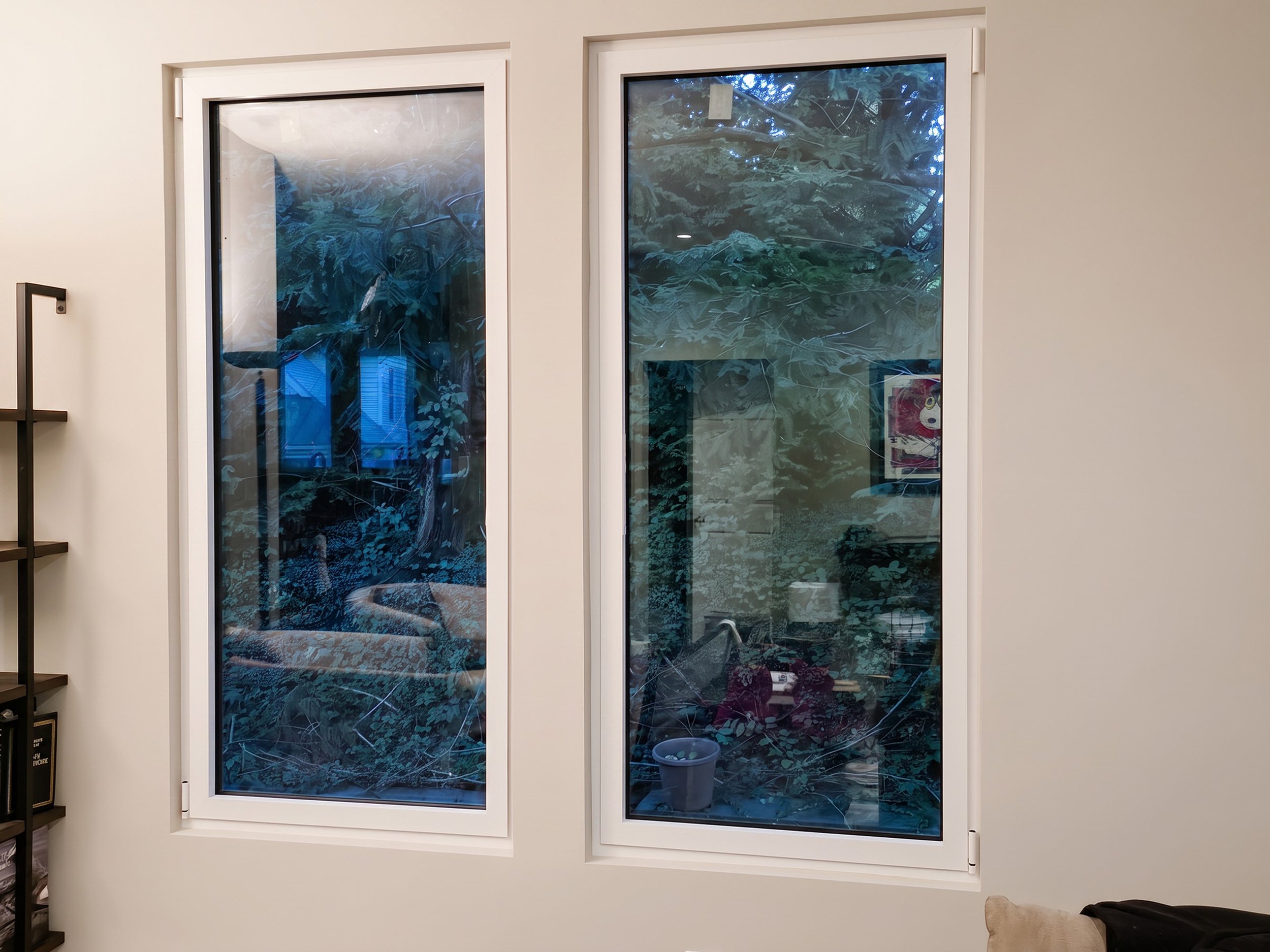

From inside the house, the white aluminum integrates naturally with the light walls and existing trim, giving the windows a clean appearance without introducing a heavy dark frame into the rooms. On the exterior, the darker aluminum provides contrast against the home's siding and white architectural trim.
The photos from the completed project show why this approach works particularly well for renovation projects. The windows have a distinctly modern construction, but their colors allow them to remain compatible with the existing residential architecture.
Tilt & Turn Functionality in a Traditional American Home
The project also replaced conventional double-hung operation with Vetrina's tilt & turn configuration.

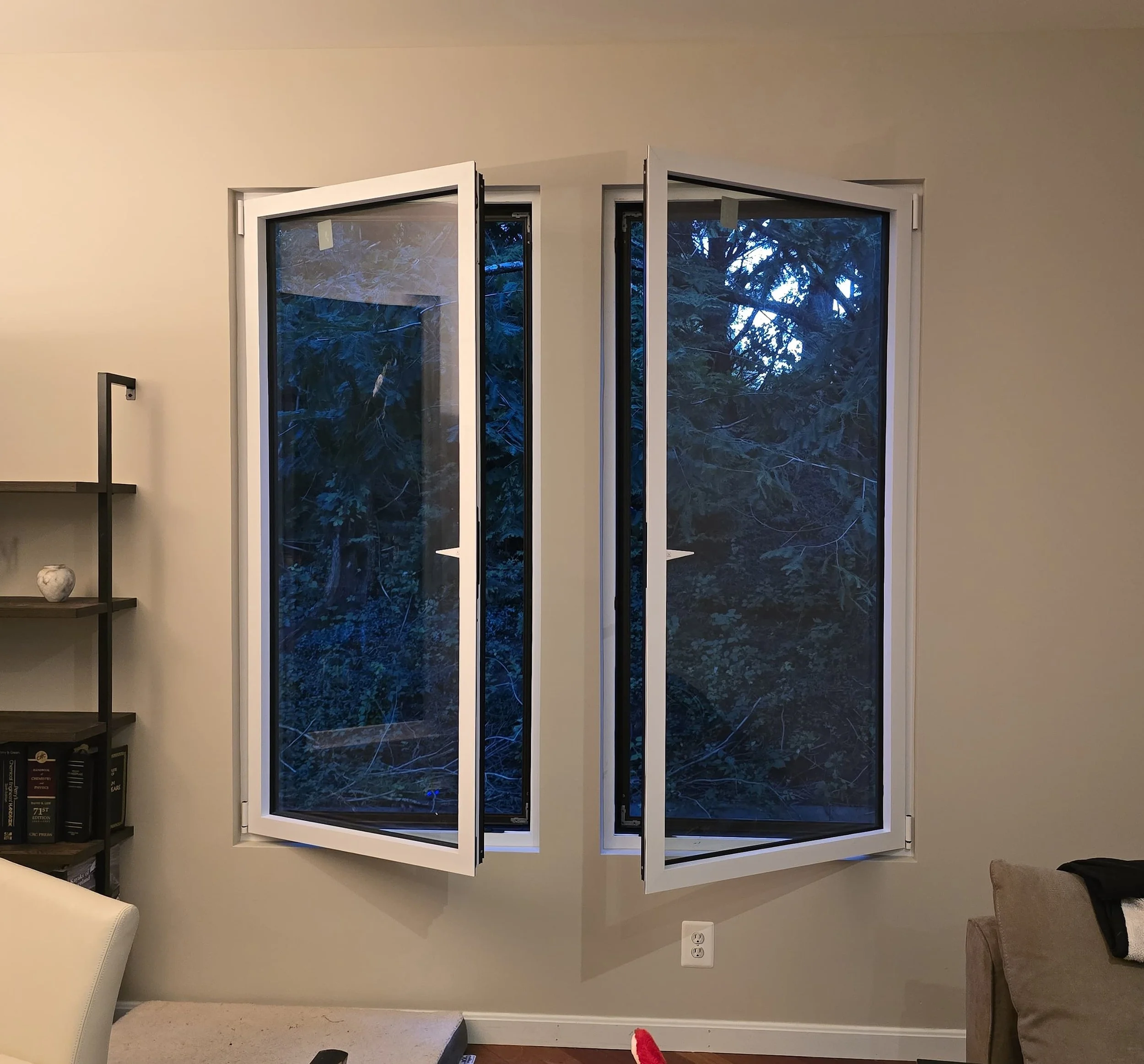

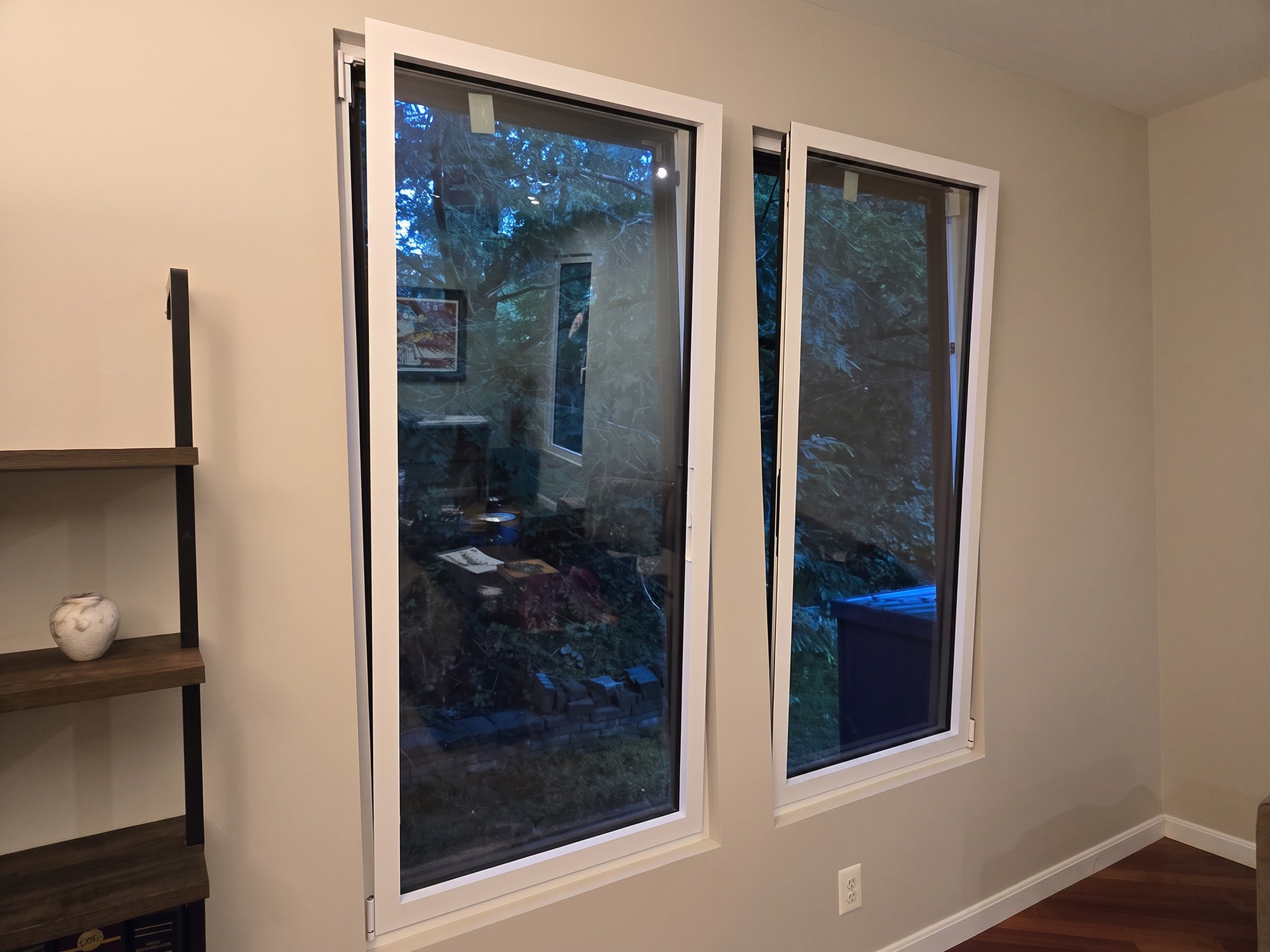

A tilt & turn window combines two opening functions in the same sash. In the turn position, the window swings inward like a casement window, providing a large opening and making the exterior side of the glass easier to access for cleaning. In the tilt position, the top of the sash opens inward for ventilation while most of the window remains closed.
For this project, microventilation adds another option for introducing a smaller amount of airflow.
This gives the homeowner significantly more control over ventilation than a conventional fixed or double-hung configuration while maintaining a simple appearance when the windows are closed.
Thermally Broken Aluminum for Residential Performance
Aluminum is valued for its strength, dimensional stability and ability to support relatively large areas of glass with narrow profiles. Modern residential aluminum systems, however, are very different from the basic aluminum windows commonly found in older buildings.
The Ardmore 70mm system used here incorporates a thermal break within the aluminum frame and sash, reducing direct thermal transfer between the exterior and interior portions of the profiles.
The project was also specified with 1-1/8" insulated glass units incorporating Low-E glazing, an argon-filled air space and a black spacer, creating a complete fenestration assembly designed around thermal and weather performance.
That difference was noticeable to the homeowner after the installation. In their Google review, they specifically reported an improvement in interior comfort and reduced drafts compared with the original windows, while also commenting on the noticeably substantial construction of the new units.
Modern Performance Without Changing the Character of the House
One of the most important lessons from this project is that aluminum windows are not limited to contemporary homes with large expanses of black-framed glass.

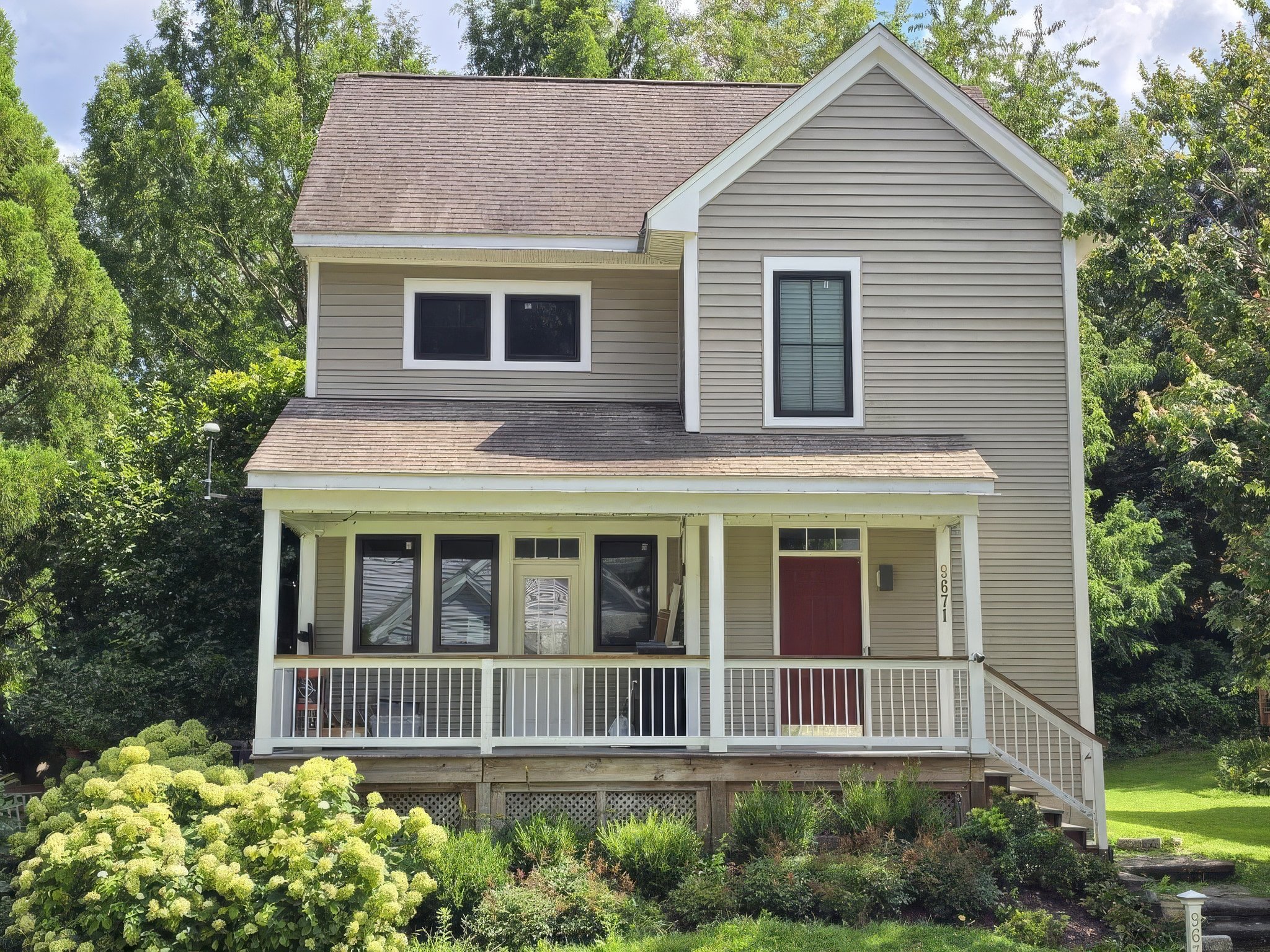

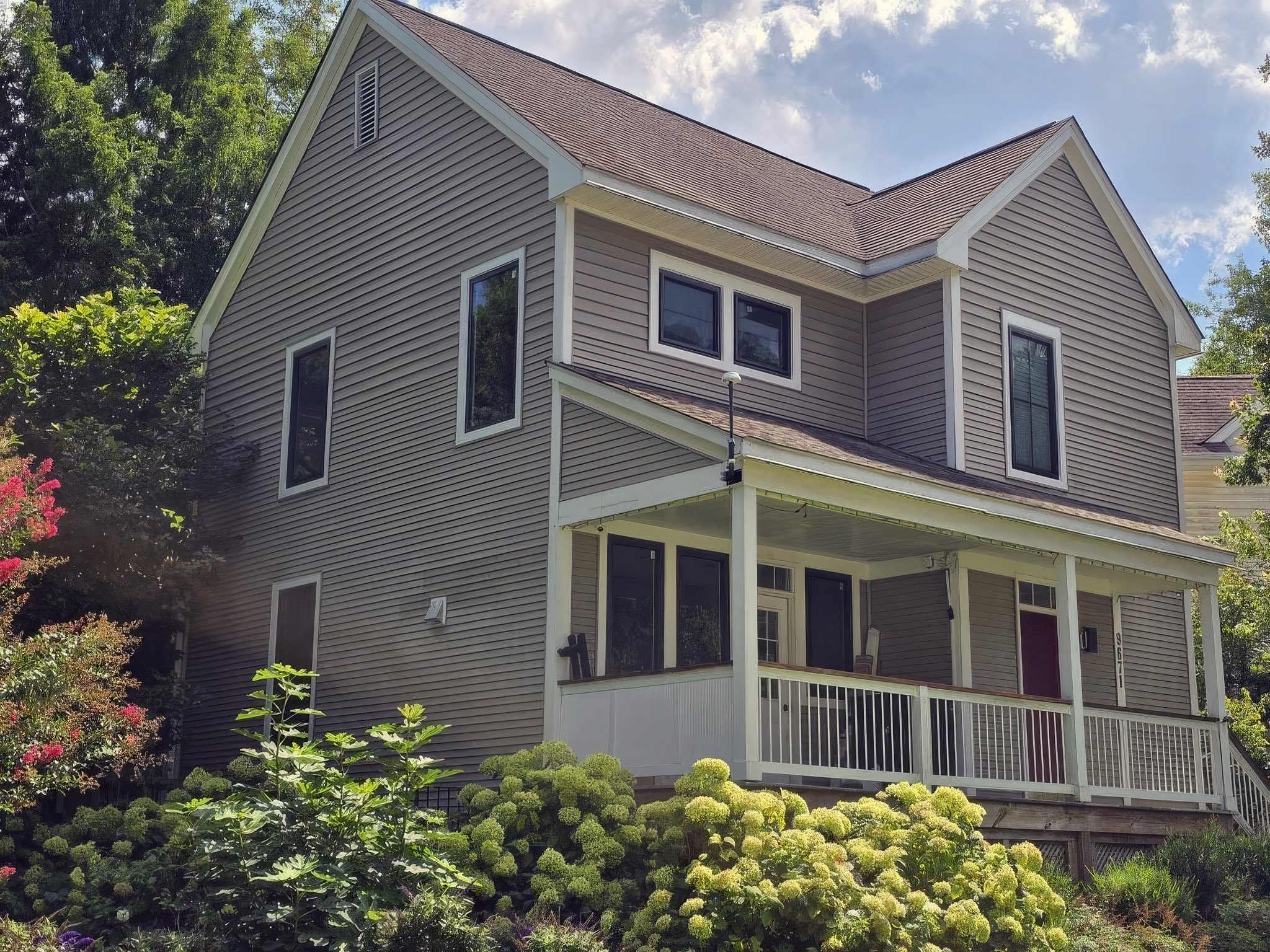

The Vienna residence has a much more traditional architectural character. Its pitched roofs, siding, porch and white trim remain visually dominant, while the new windows provide a subtle upgrade rather than attempting to redefine the house.
Using custom dimensions, multiple window types and dual-color profiles allowed Vetrina to introduce the performance and functionality of a modern European-style aluminum system while respecting the existing design.
From the exterior, the dark frames add definition to the openings. From inside, the white finish keeps the appearance bright and familiar.
Designed by Vetrina, Installed Locally
Vetrina designed and manufactured the complete window package specifically for the residence, while installation was performed by the homeowner's local installer.
That arrangement also illustrates how Vetrina works with residential projects beyond the immediate Philadelphia area. Custom aluminum windows can be engineered and manufactured for the individual project and delivered for installation by a qualified local contractor.
The homeowner also highlighted Vetrina's support throughout the process, including assistance with product selection, technical questions, window construction, window treatments and installation details.
For a custom window project, that coordination is particularly important. Window size and operation are only part of the specification. Glass configuration, frame color, screens, hardware, installation conditions and architectural compatibility all have to be considered together.
A Different Approach to Residential Window Replacement
The Private Residence in Vienna, VA demonstrates that replacing older windows can be an opportunity to do more than simply reproduce what was there before.
By using the Vetrina Ardmore 70mm thermally broken aluminum system, the homeowners were able to combine custom sizing, tilt & turn operation, microventilation, insulated glazing and dual-color framing in a package designed specifically for their home.
For homeowners, architects and contractors considering replacement windows, additions or new residential construction, Vetrina can design and manufacture Ardmore aluminum windows around the architectural, operational and performance requirements of the individual project.
For info about supplying custom aluminum or uPVC windows and doors for your residential or commercial projects, please message us here, or send an email to info@vetrinawindows.com.
